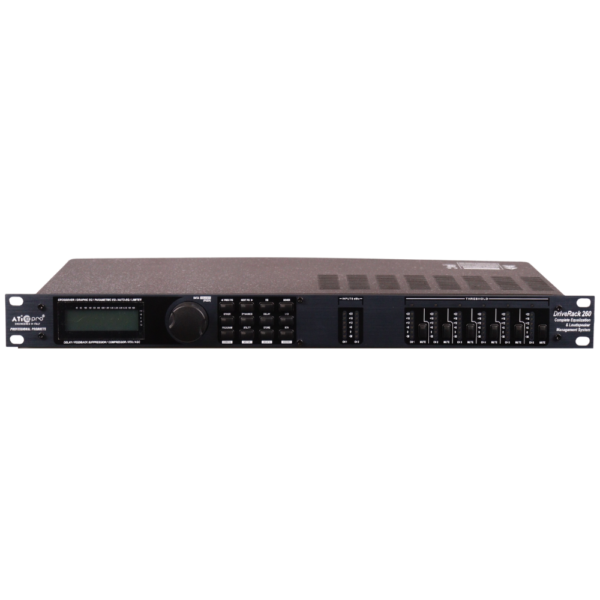

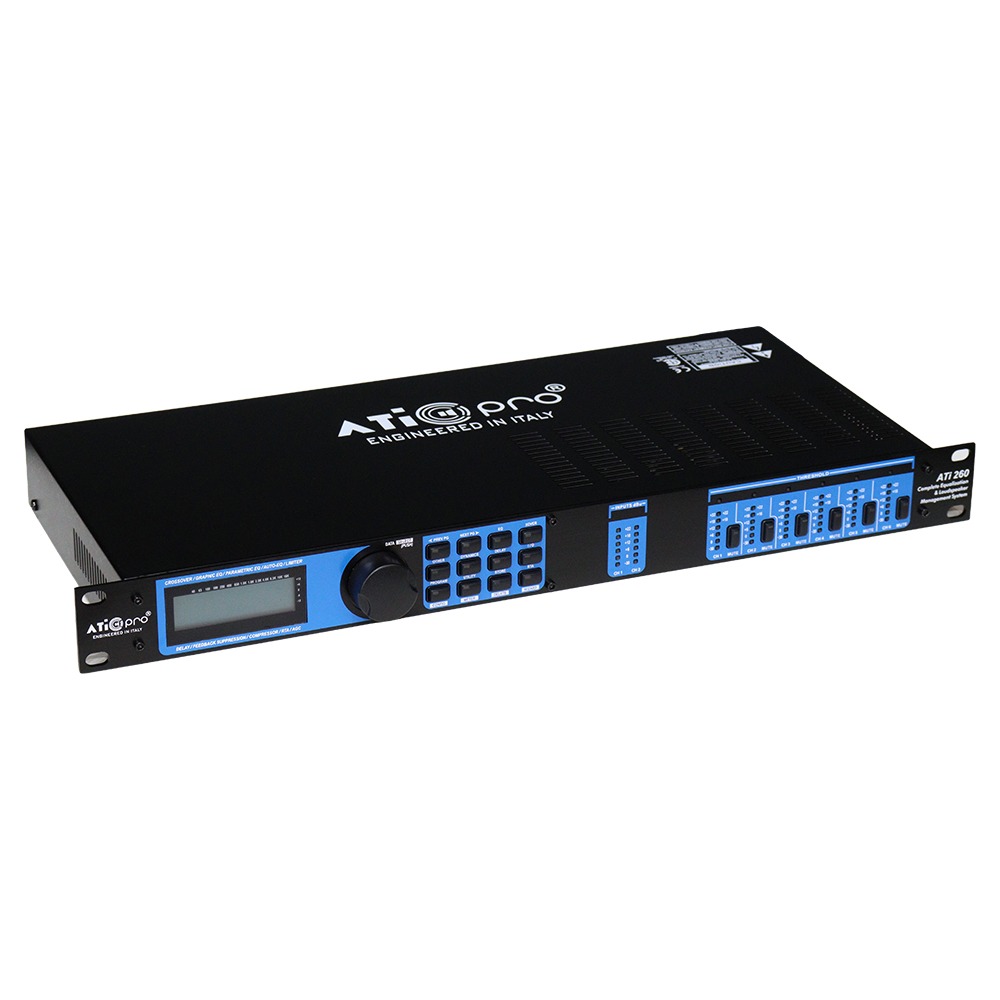

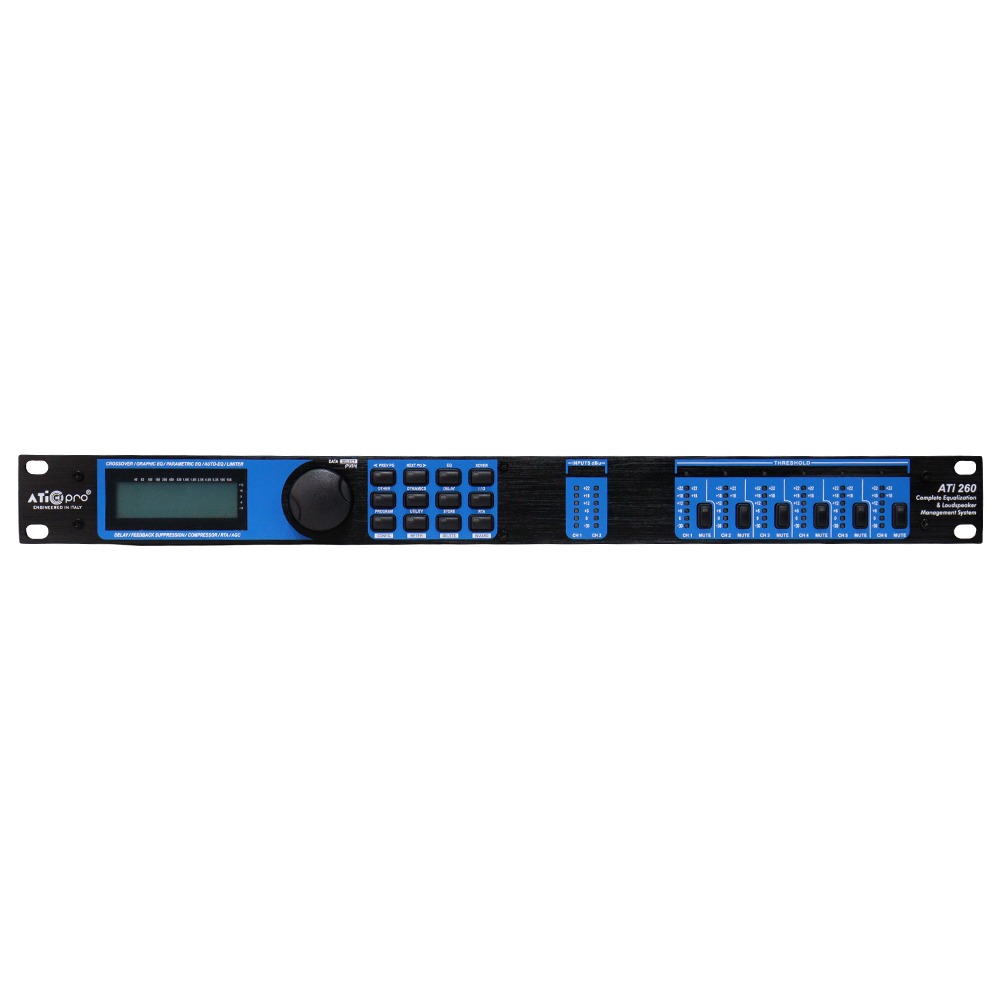

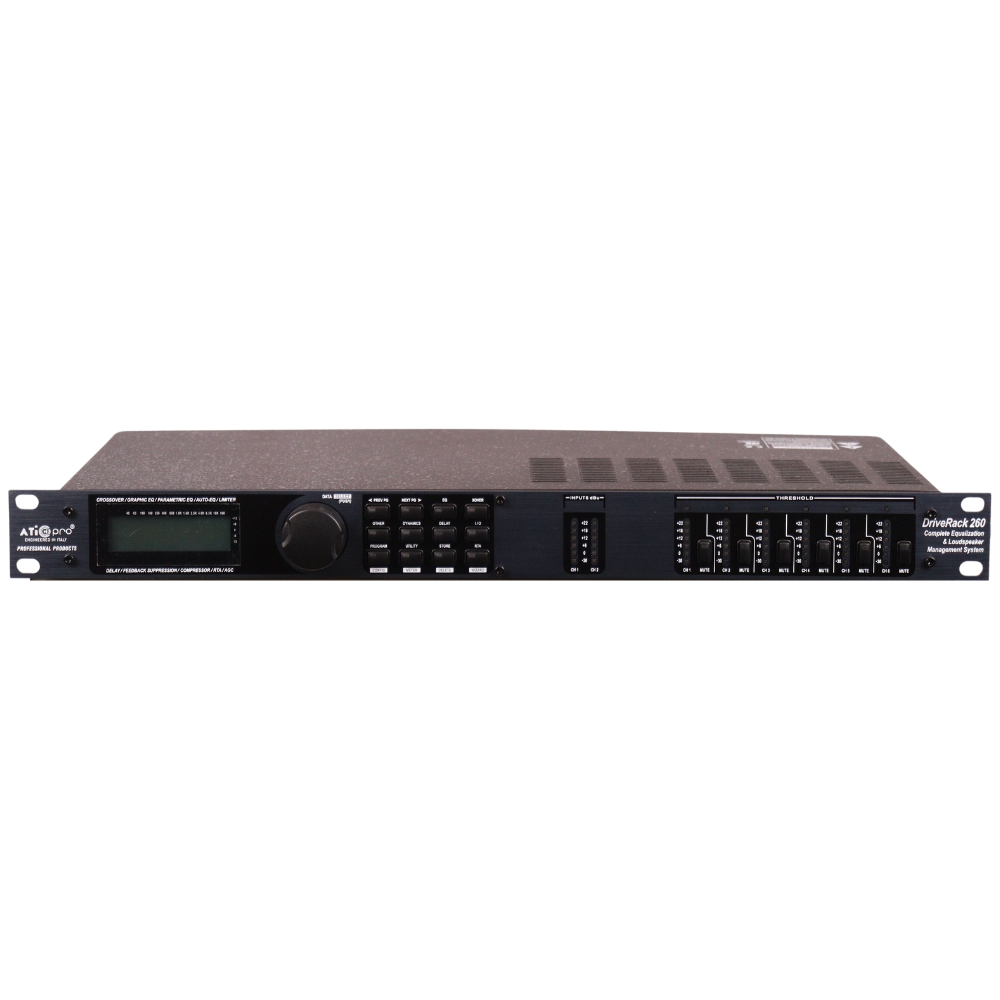

ATIPRO Driverack ATI 260 Digital Crossover

(1 customer review)

Specifications:

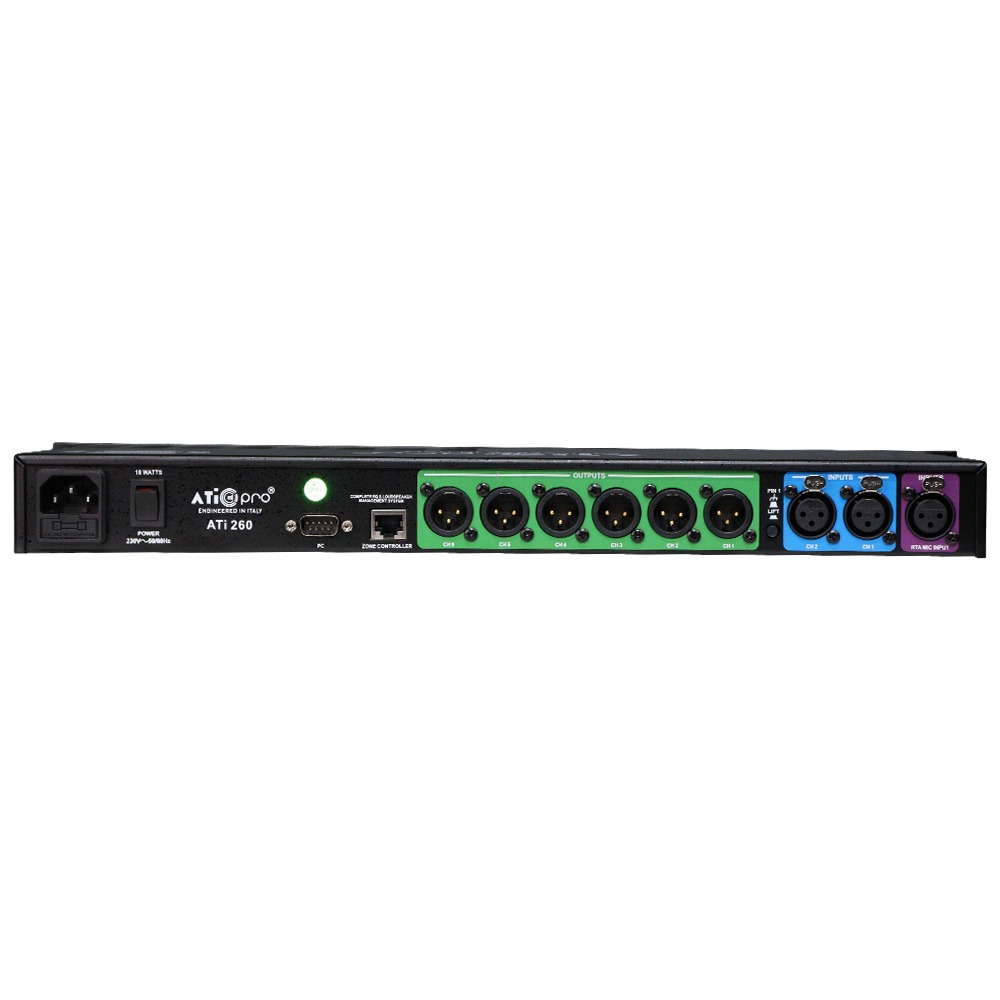

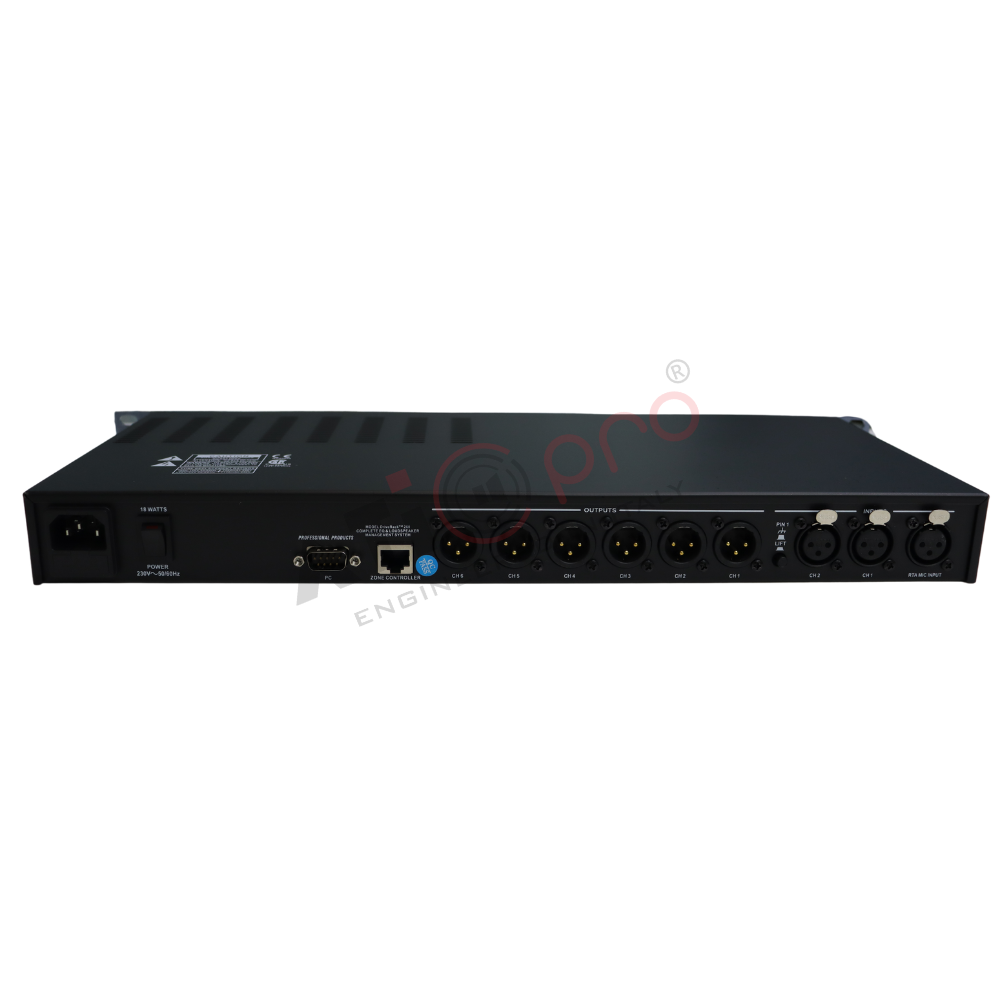

Input (2) line inputs. (1) RTA Mic input
Input Connectors (2) Female XLR line inputs. XLR RTA Mic input
Input Type Electronically balanced/RF filtered
Input Impedance >40k ohm
Max Input +30dBu with input jumpers in +30 position
CMRR > 45dB
Mic Preamp Phantom Power +15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN) < -110dB, 22Hz-22kHz, 150 ohm (RTA) Output 6 total Output Connectors Male XLR Output Type Electronically balanced, RF filtered Output Impedance 120ohm Max Output +22dBu A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate 48kHz
D/A Dynamic Range 112 dB A-weighted, 109dB unweighted
Dynamic Range >110 dB A-weighted, >107dB unweighted
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk >110dB, 120dB typical, (input-to-output: >100dB)

Embedded With Turbo Ram For Fast & Smooth Performance

Share On

Description

  • The ATI Driverack 260 is a professional digital crossover system designed to optimize and enhance live sound performance.
  • Features (2) line inputs and (1) RTA mic input for real-time analysis and precision tuning.
  • Equipped with electronically balanced, RF-filtered XLR connectors for superior signal integrity.
  • Supports phantom-powered RTA mic input (+15VDC) for accurate room and speaker tuning.
  • Delivers ultra-low noise performance with an Equivalent Input Noise (EIN) of < -110dB.
  • Offers a wide dynamic range exceeding 110dB A-weighted for clear and distortion-free sound.
  • Utilizes a 48kHz sample rate with high-quality A/D and D/A conversion for pristine audio reproduction.
  • Provides a max input handling of +30dBu and max output of +22dBu, ensuring high headroom and flexibility.
  • Features advanced Type IV Dynamic Range Processing for superior signal clarity and punch.
  • Achieves a THD+Noise level of just 0.003%, ensuring transparency in sound reproduction.
  • Perfect for professional sound reinforcement, live events and studio applications requiring precise crossover control and signal management.
