Description

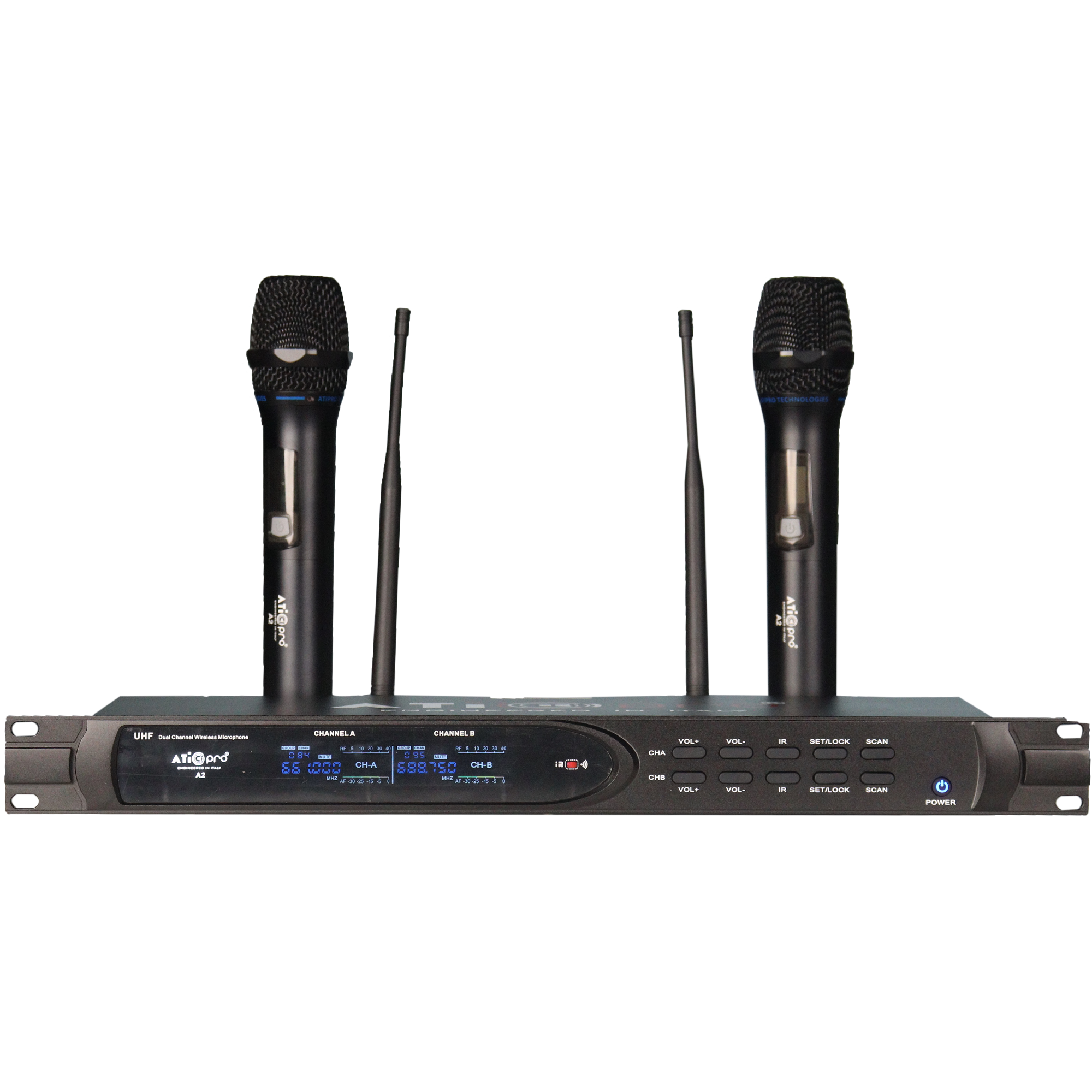

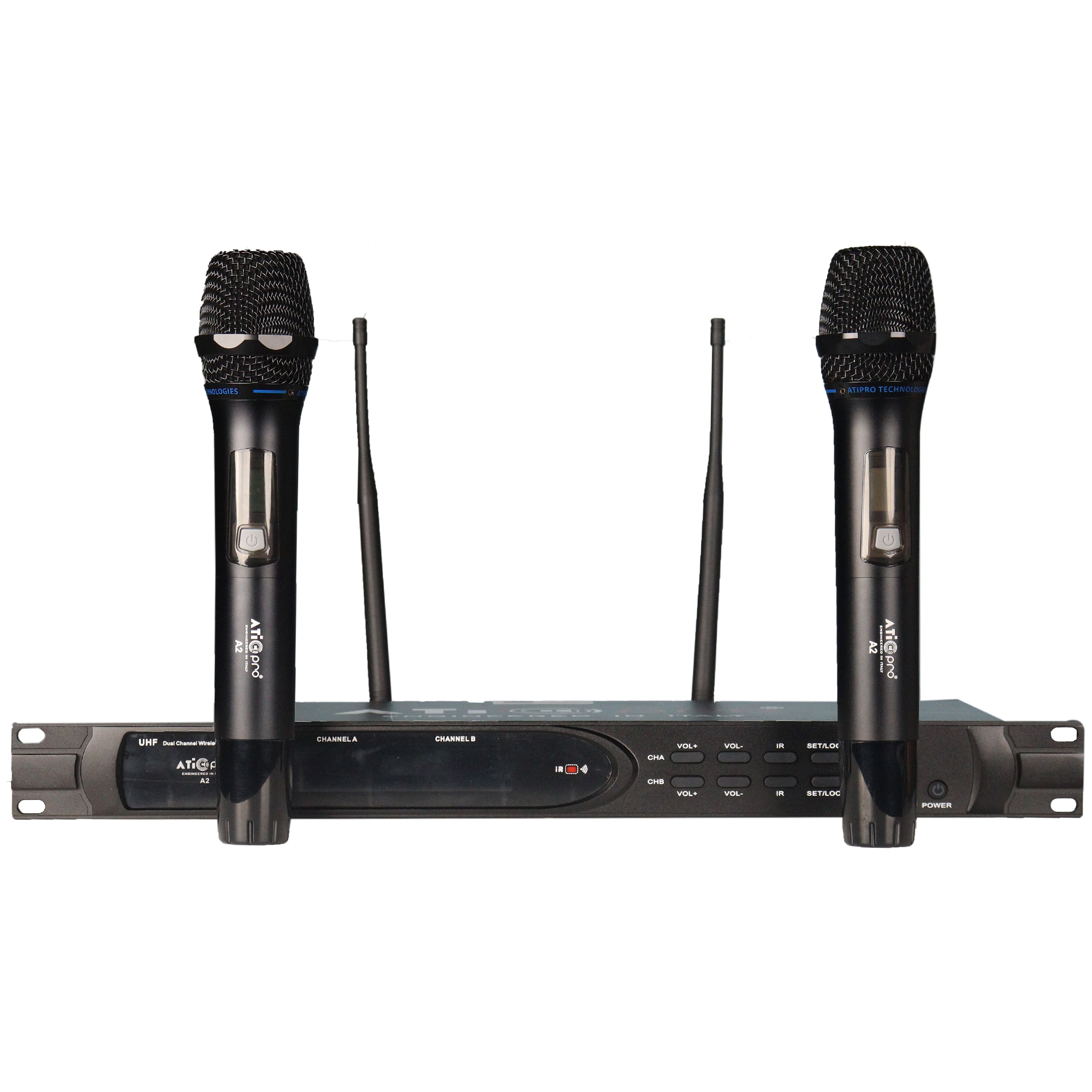

ATI A2 Wireless Microphone
Professional Wireless Microphone System for Clear, Reliable Performance
The ATI A2 Wireless Microphone System is designed for stable wireless performance, clear vocal reproduction, and dependable operation across a wide range of professional and entertainment applications. With 100 selectable channels, a wide 480–860 MHz frequency range, and PLL-based transmission technology, the ATI A2 delivers consistent wireless connectivity with excellent signal quality.
Ideal for stage performances, events, conferences, DJ setups, announcements, karaoke, houses of worship, and professional sound systems.
Key Features
- 100 Selectable Channels for flexible frequency management
- 480–860 MHz Wide Frequency Range
- >100 dB Dynamic Range for detailed audio reproduction
- 35 Hz–20 kHz Frequency Response
- <0.5% Total Harmonic Distortion
- >90 dB Signal-to-Noise Ratio
- 50 m Valid Transmission Distance
- PLL Oscillation Technology for stable wireless performance
- 10 mW / 5 mW Selectable Transmission Power
- >50 dB Image Rejection
- <75 kHz Adjustable Frequency Deviation
- Coding Switch Channel Selection
- Dual Balanced + 6.35 mm Mixed Output
System Specifications
Whole System
| Specification | Details |
|---|---|
| Channels | 100 Channels |
| Frequency Range | 480–860 MHz |
| Bandwidth | >200 kHz |
| Frequency Response | 35 Hz–20 kHz |
| Dynamic Range | >100 dB |
| T.H.D. | <0.5% |
| S/N Ratio | >90 dB |
| Valid Distance | 50 m |

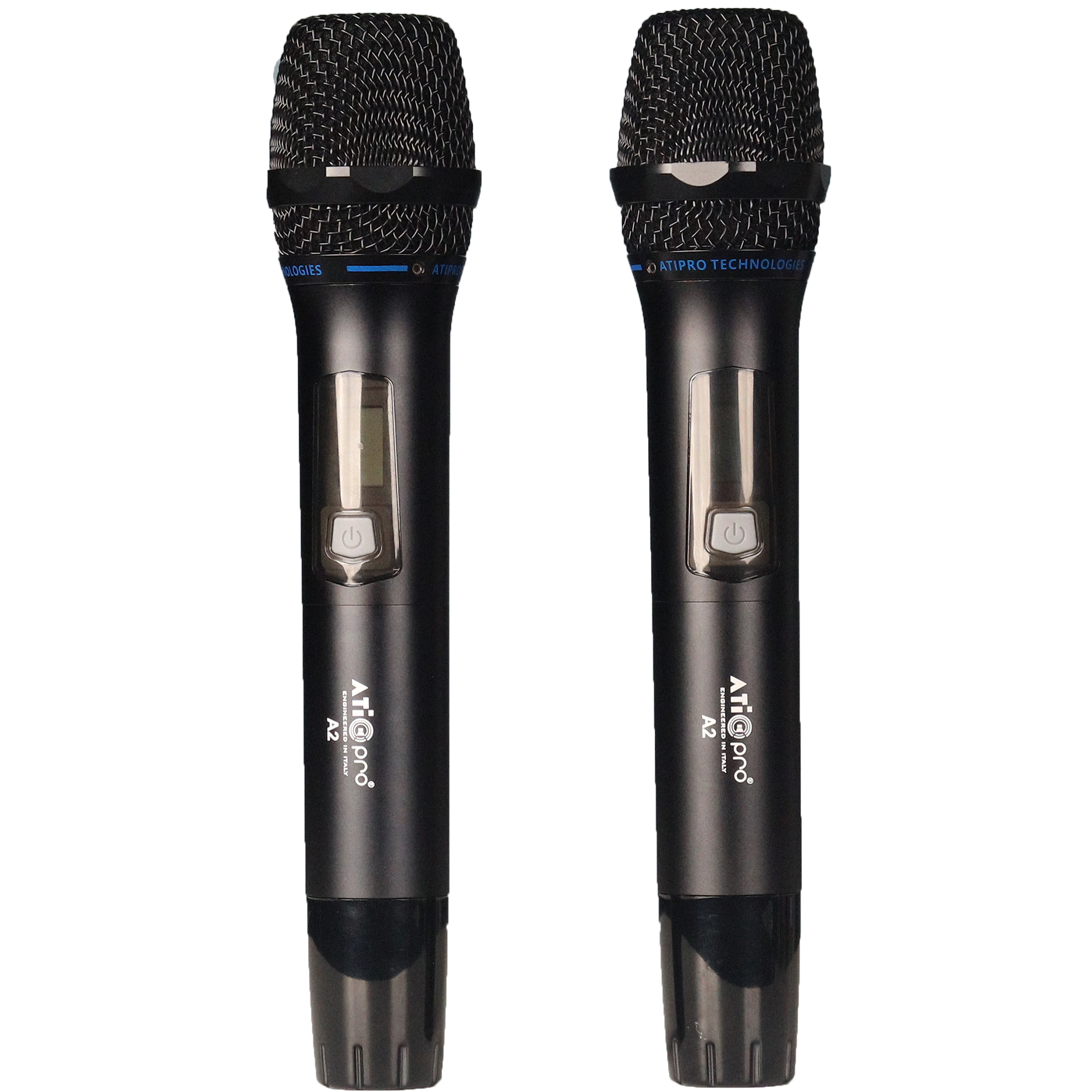

Transmitter
| Specification | Details |
|---|---|
| Transmission Power | 10 mW / 5 mW |
| Oscillation Mode | PLL |
| Image Rejection | >50 dB |
| Adjustable Frequency Deviation | <75 kHz |
| Channel Switch Mode | Coding Switch |
| Power | DC 2.4–4.0 V |

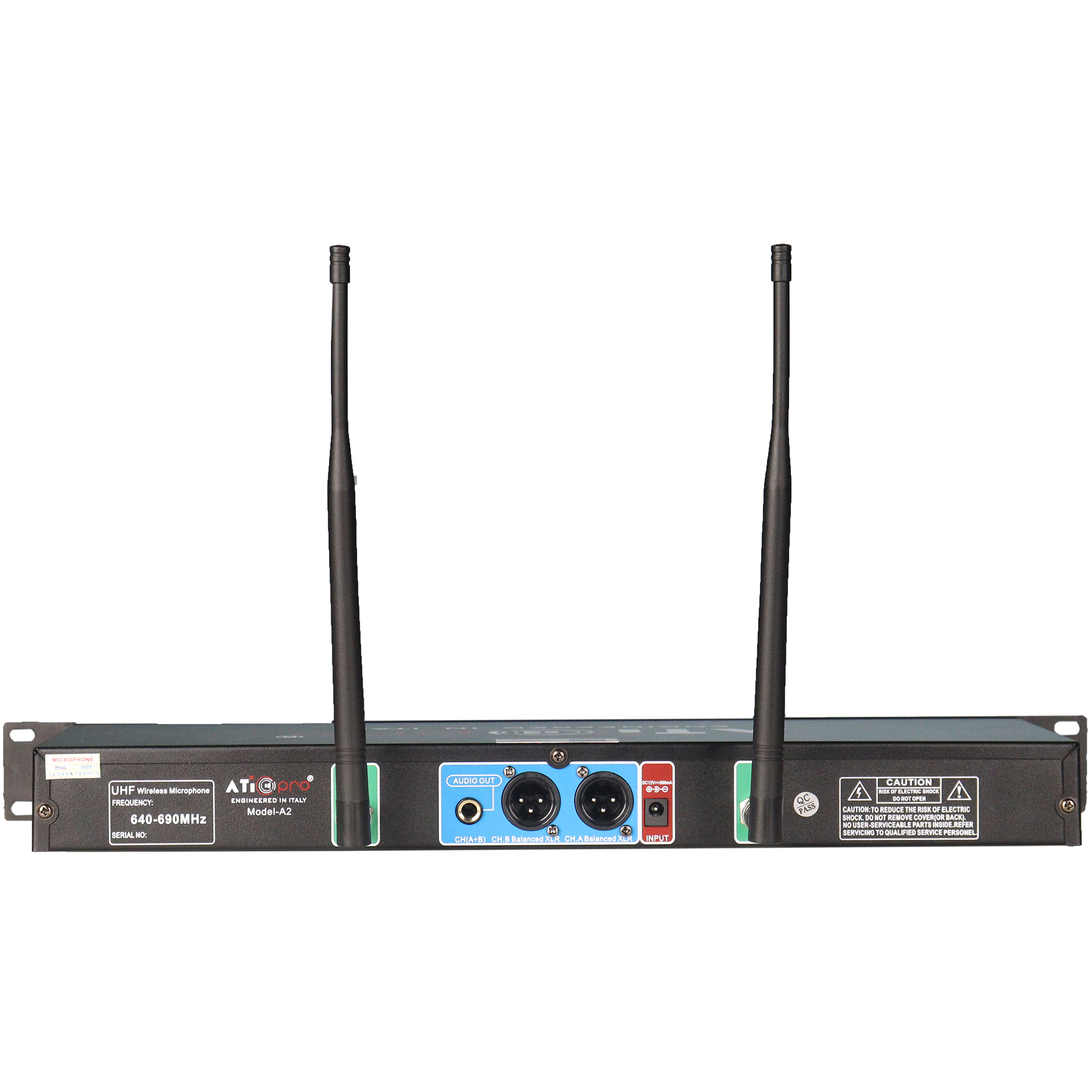

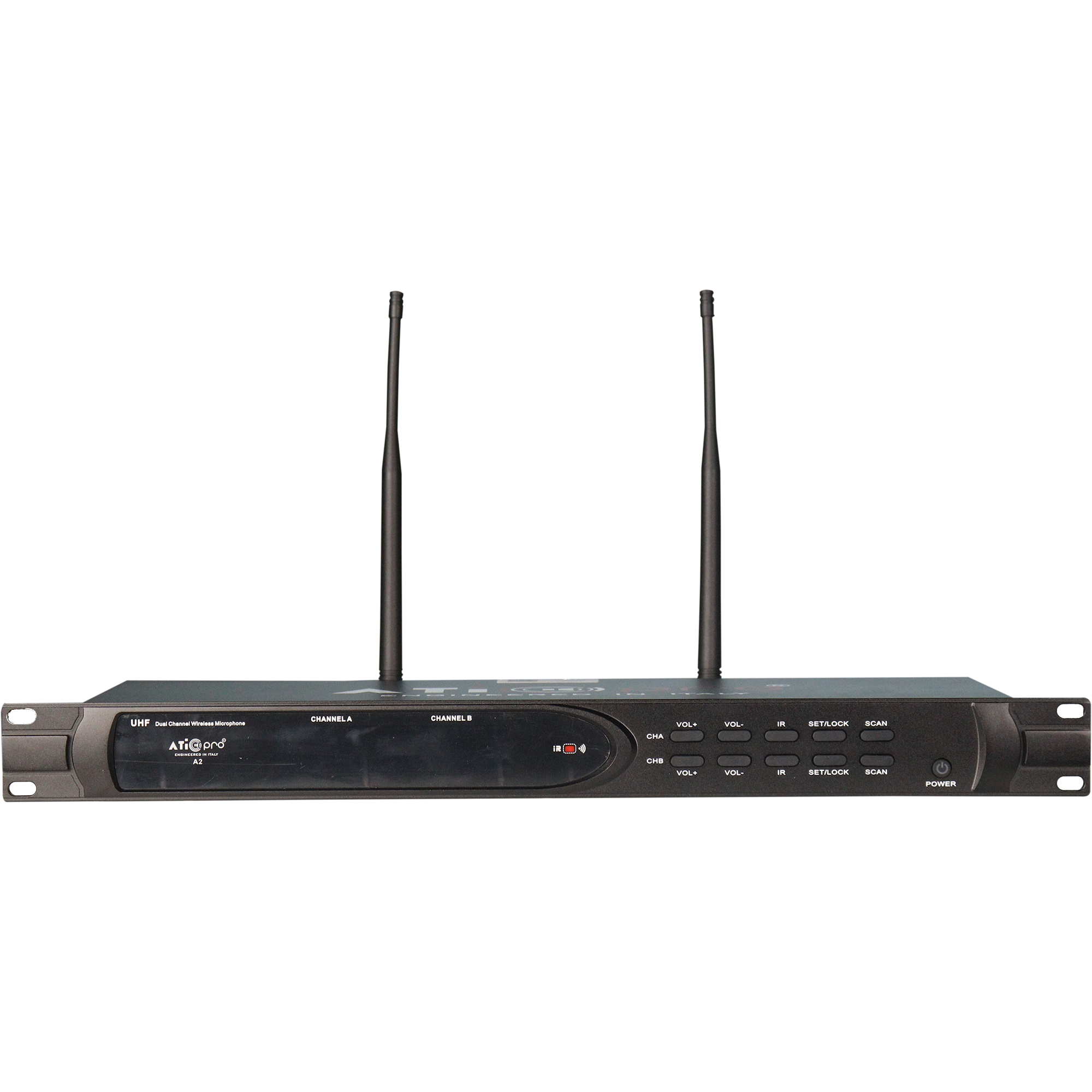

Receiver
| Specification | Details |
|---|---|
| Sensitivity | 2.0 µV |
| Oscillation Mode | PLL |
| S/N Ratio | >90 dB |
| Distortion | <0.5% |
| Output | 2 × Balanced + 1 × 6.35 mm Mixed |
| Power | DC 14–18 V |
| Power Consumption | 2 W–3 W |
Designed for Professional Sound
Whether you’re performing on stage, addressing an audience, hosting an event, or running a professional audio setup, ATI A2 combines reliable wireless transmission with clean and stable audio performance.
