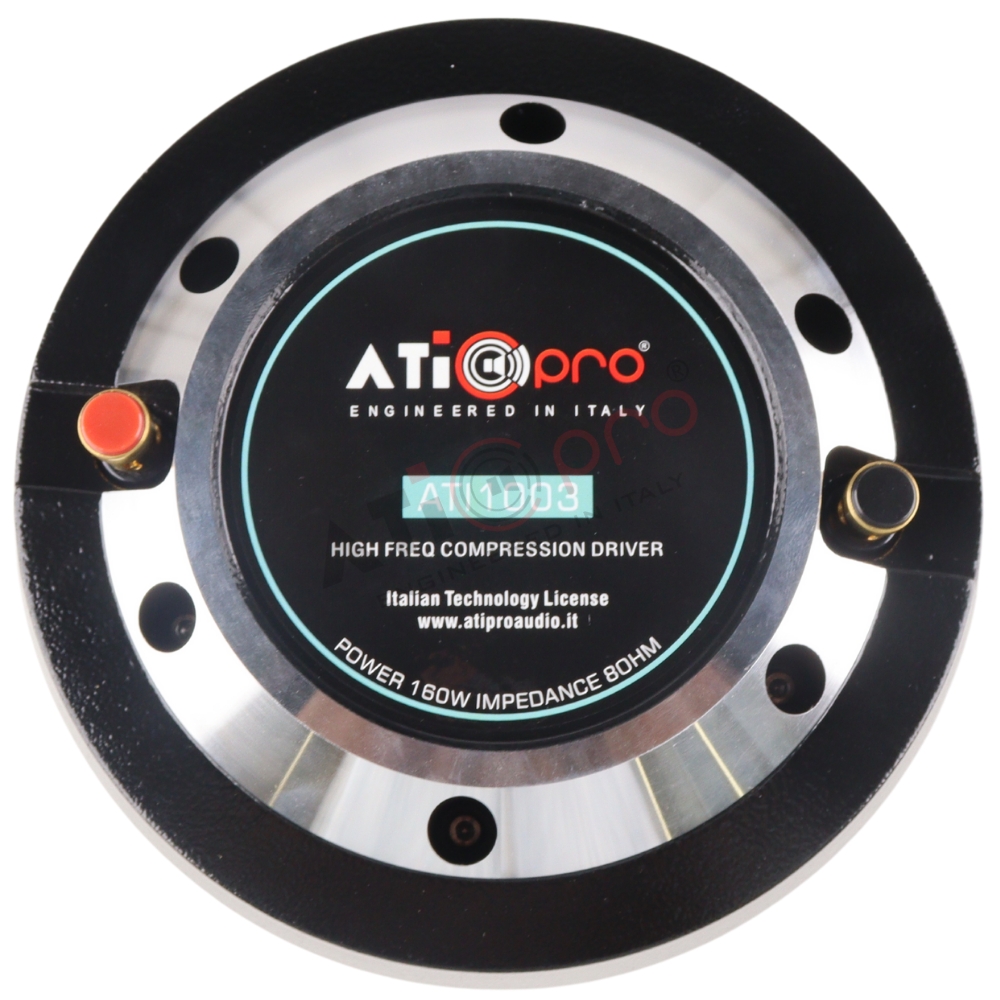

| Model | 1003 |
| Throat | 2 Inch |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 150 Watt |
| Continuous Power Handling | 300 Watt |
| Sensitivity(1W/1M) | 105 +-2dB |
| Frequency Range(-10dB max) | 500 – 12000 Hz |
| Voice Coil Diameter | 4.00 Inch |
| Voice Coil Material | CCAW |
| Voice Coil Former | Kapton |
| Diaphragm Material | Titanium, Phenolic |
| Magnet Type | Strontium Ferrite |
| Magnet Size | 190mm |
| Cover(or Adaptor) Material | Aluminium |
| Model | 1003 |
| Throat | 2 Inch |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 150 Watt |
| Continuous Power Handling | 300 Watt |
| Sensitivity(1W/1M) | 105 +-2dB |
| Frequency Range(-10dB max) | 500 – 12000 Hz |
| Voice Coil Diameter | 4.00 Inch |
| Voice Coil Material | CCAW |
| Voice Coil Former | Kapton |
| Diaphragm Material | Titanium, Phenolic |
| Magnet Type | Strontium Ferrite |
| Magnet Size | 190mm |
| Cover(or Adaptor) Material | Aluminium |
