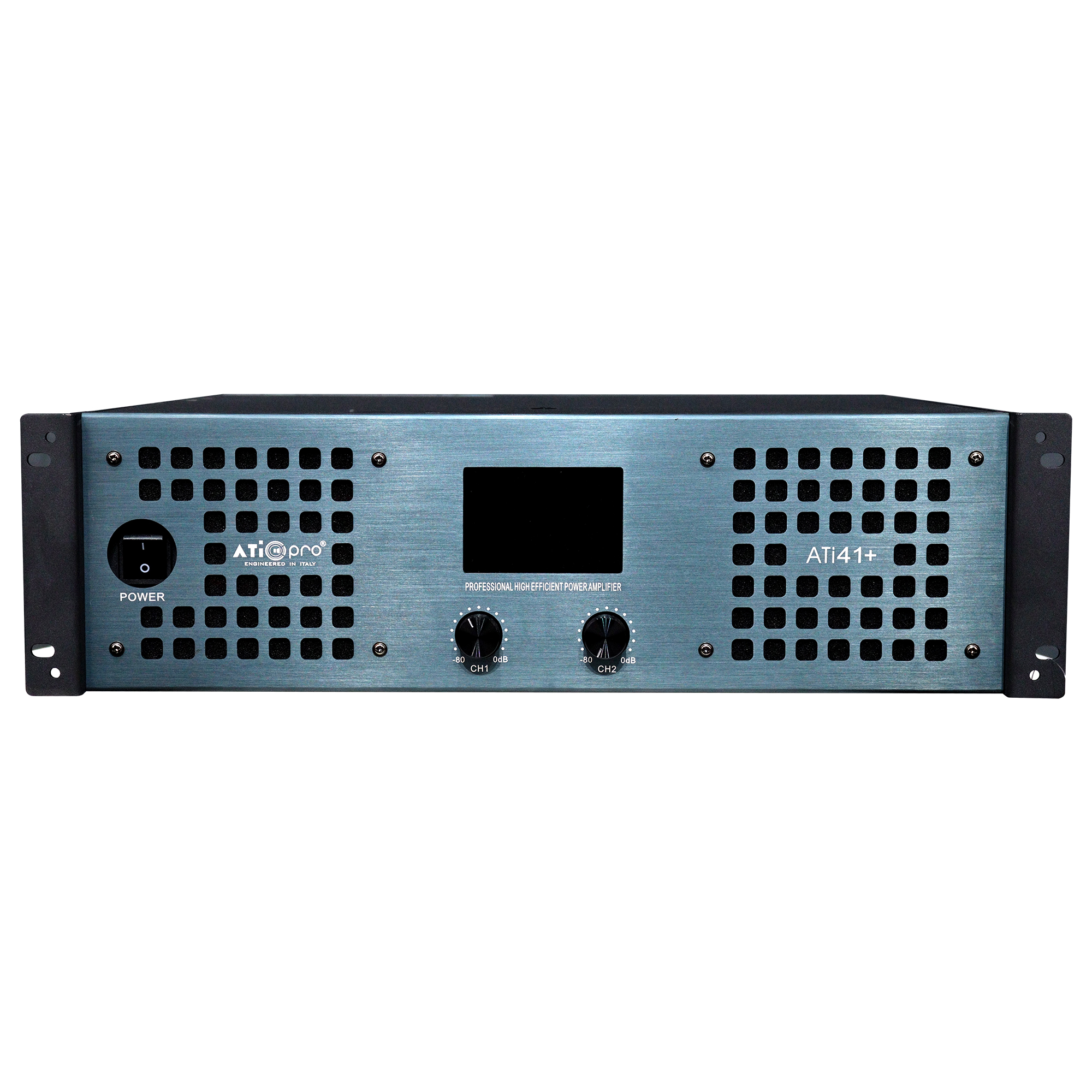

DJ Amplifier Model ATI 41+ With Digital Display

ATI 41+ Power Amplifier Features and Specifications

• Stereo Power Output: Delivers 2×2000 Watt at 8Ω and 2×4000 Watt at 4Ω for powerful audio performance.
• Bridge Power Output: Provides 4000 Watt at 8Ω and 8000 Watt at 4Ω in bridge mode.
• Frequency Response: Covers a wide frequency range from 20Hz to 20kHz with ±0.1dB tolerance for accurate sound reproduction.
• THD+N (Total Harmonic Distortion + Noise): Maintains less than 0.05% distortion at 8Ω, 1kHz and 1/4 output for clean audio.
• Slew Rate: Offers a slew rate greater than 20V/µs for fast and accurate signal response.
• Signal-to-Noise Ratio: Provides an 80dB signal-to-noise ratio for clear audio output.
• Damping Factor: Features a damping factor greater than 2000 at 8Ω and 1kHz for controlled bass response.
• Input Sensitivity: Supports 0.775V, 1.0V and 1.4V input sensitivity options for flexible system integration.

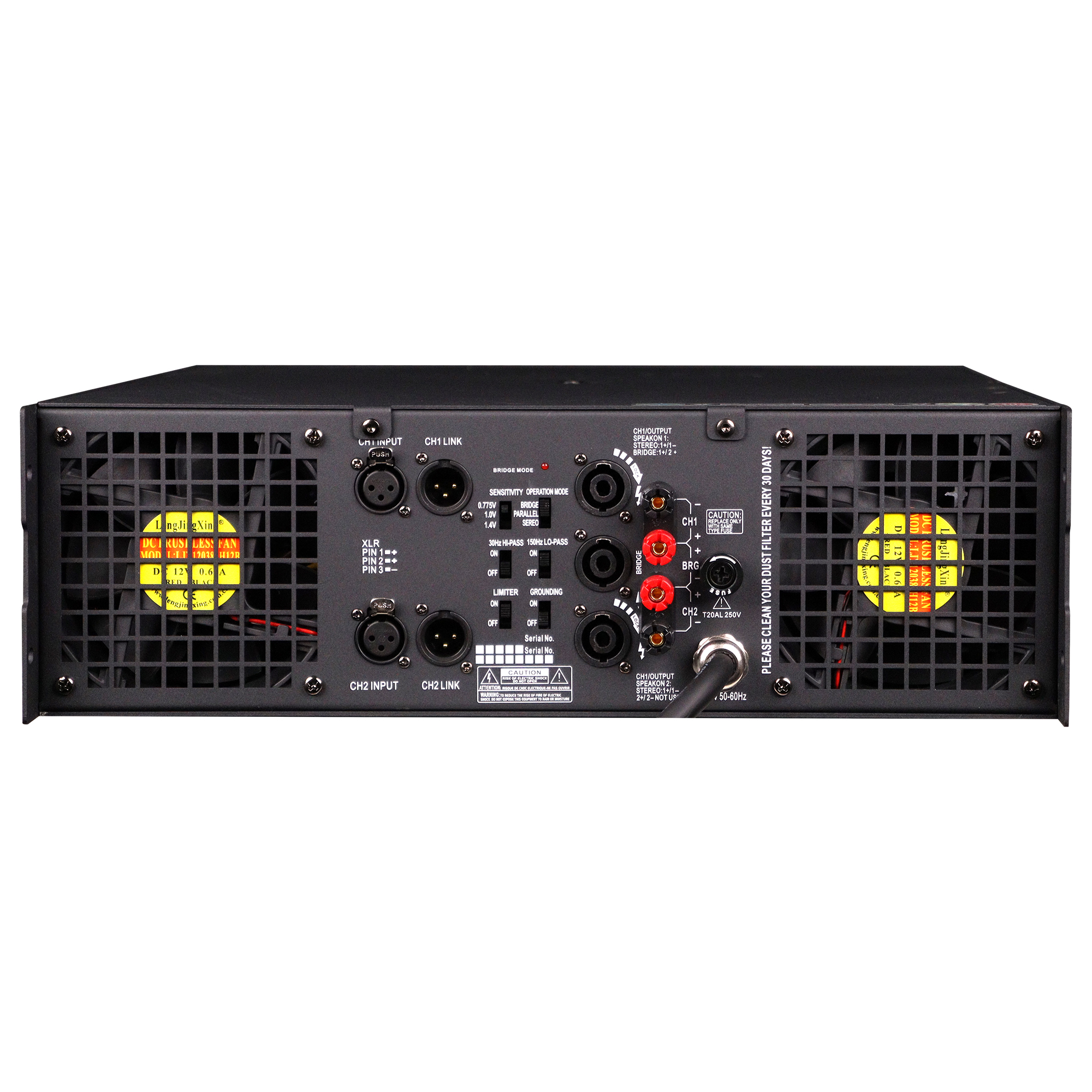

• Input Connectors: Equipped with 3-pin XLR electronically balanced connectors for reliable signal transmission.
• Link Connectors: Features 3-pin male XLR connectors for convenient signal linking between amplifiers.
• Output Circuit: Uses Class H output circuitry for efficient and powerful amplifier performance.
• Input Impedance: Offers 20kΩ for balanced inputs and 10kΩ for unbalanced inputs.
• Output Connectors: Features NEUTRIK connectors for secure and reliable speaker connections.

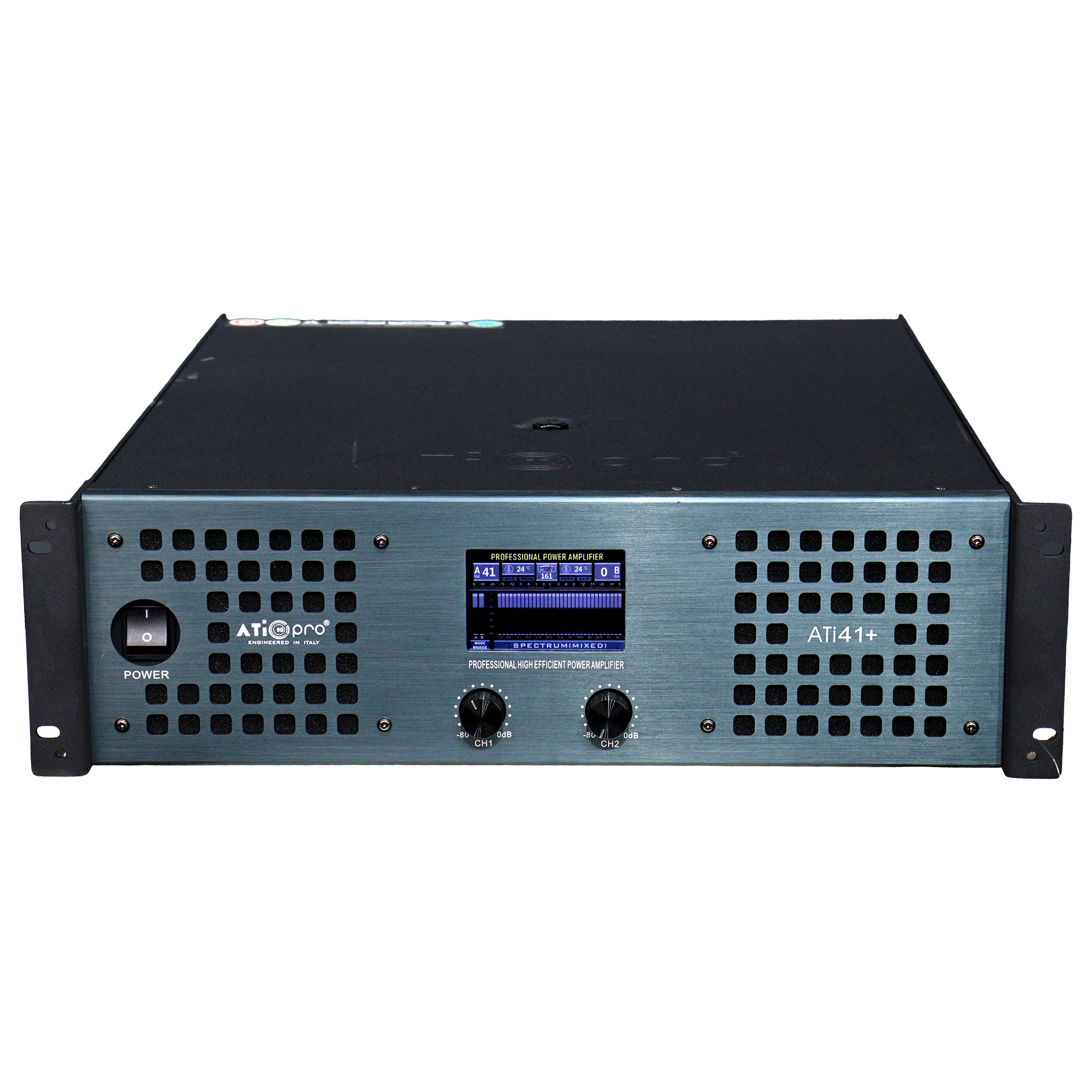

• Digital Display: Includes a digital display for convenient monitoring and operation.
• Protection Features: Includes protection against short circuit, open circuit, overheating, overload, DC and supersonic frequencies to safeguard the amplifier and connected equipment.
