Description

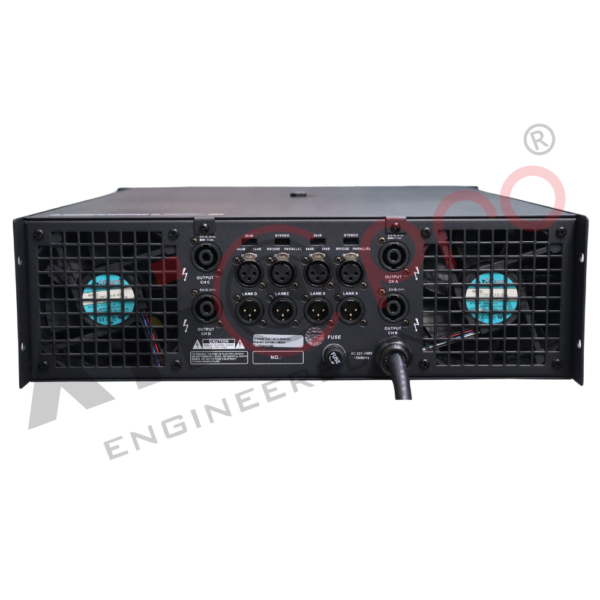

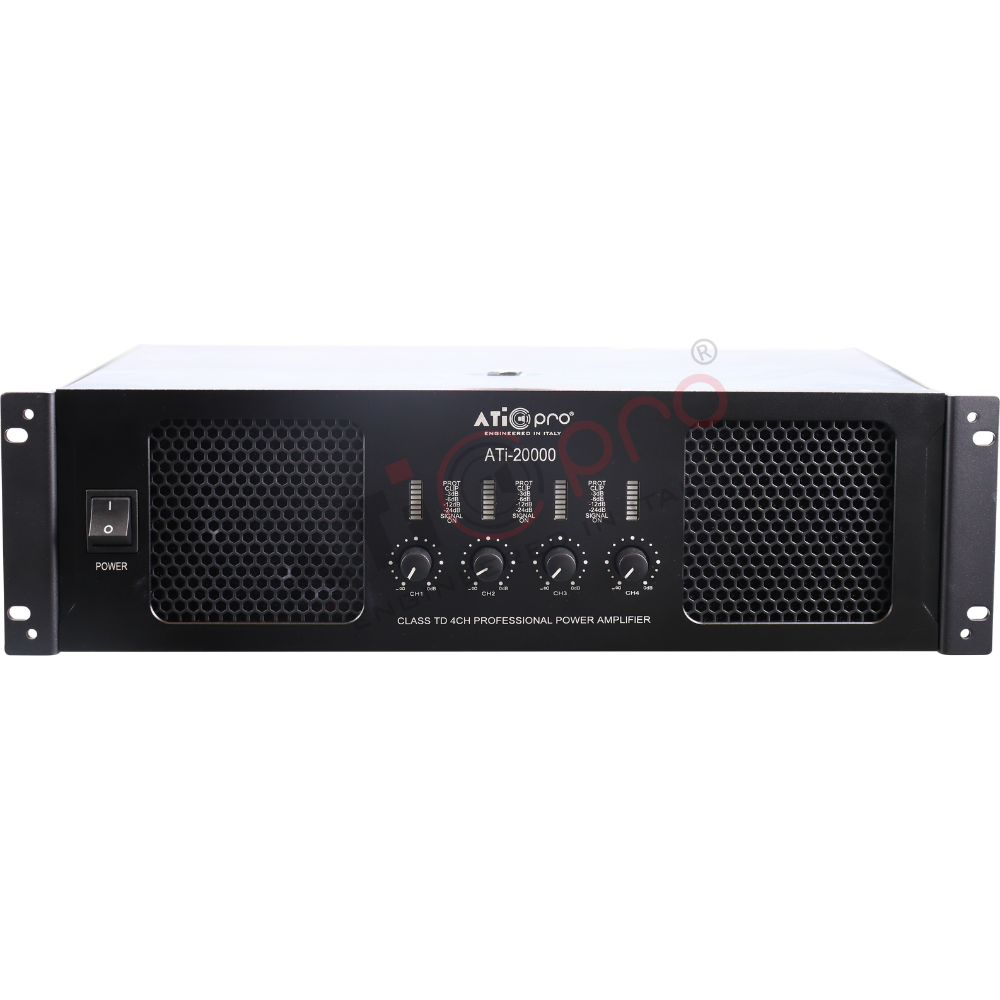

| Model | ATi-20000 |
| 8Ω stereo power | 4X1800W |
| 4Ω stereo power | 4X2700W |
| 2Ω stereo power | 4X3600W |
| 8ΩBridge Mono power | 2X4600w |
| 4ΩBridge Mono power | 2X6800w |
| Frequency response (+/-0.db) | 20Hz-20KHz+-0.5dB |
| THD+N(8OHM 1KHZ IN 1/4 OUTPUT) | <0.5%,1Kz,1/3 Power 8Ω Rated |
| Slew Rate | ›105SV/us |
| Signal Noise Ration(dB) | 110dB |
| Damping Factor(8 Ohm 1 K) | ›2000 |
| Input Connectors(per ch.) | 3-pin XLR, electrically balanced |
| Link connectors(per ch.) | XLR,3 pin male |
| Output Circuit | Class TD |
| Input Impedance | 20KΩBALANCED -10KΩUNBALANCED |
| Output Socket | Speak on Connectors |
| Protection | Protection of short circuit, open circuit, overheat, overload, DC, super sonic frequency etc. |
| Power Requirement | 200-240v 50-60Hz |
| Transport Dimension(cm) | 73.7×55.2×23.5cm |
| Net Weight | 38.5kgs |
| Gross Weight | 42kgs |
