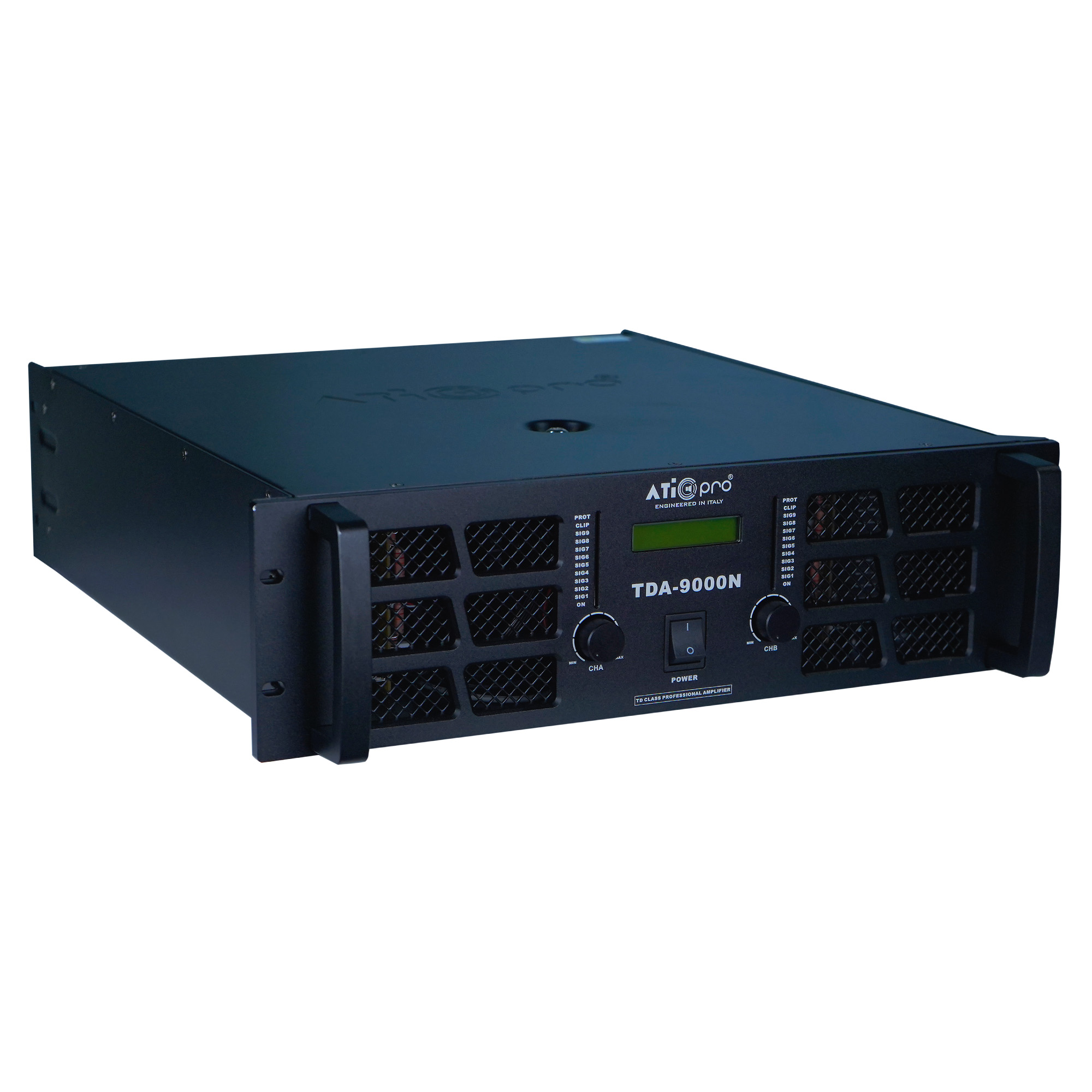

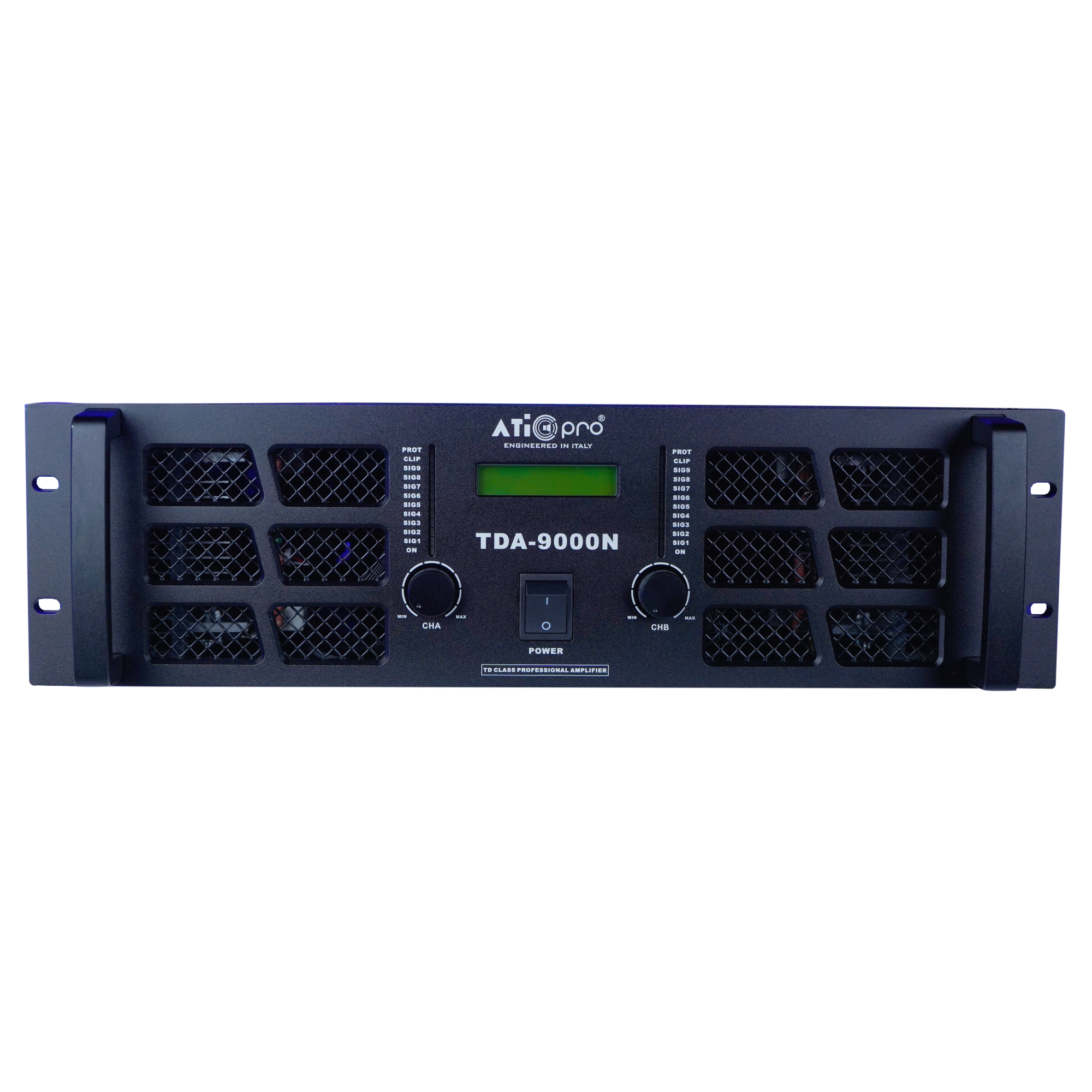

DJ Amplifier 7600 Watt Model ATI TDA-9000N

8Ω Stereo 1900W × 2
4Ω Stereo 2850W × 2
2Ω Stereo 3800W × 2
8Ω Bridge 5700W
4Ω Bridge 7600W
Frequency Response 10Hz – 20kHz (±0.35dB)
THD+N (20Hz–20kHz) ≤ 0.5% @ 8Ω, 1kHz
S/N Ratio > 101dB
Crosstalk (1kHz) > 70dB
Slew Rate > 35V/µs
Damping Factor > 5200 (8Ω, 20Hz–100Hz)
Output RMS Voltage 43.8dB (0.775V : 120V) / 44.3dB (0.775V : 127V)
Input Sensitivity 0.775V / 1V / 1.4V
Input Impedance 10KΩ Balanced / 20KΩ Unbalanced
Input Connectors XLR Active Balanced (Pin 1 GND, Pin 2 +, Pin 3 -)

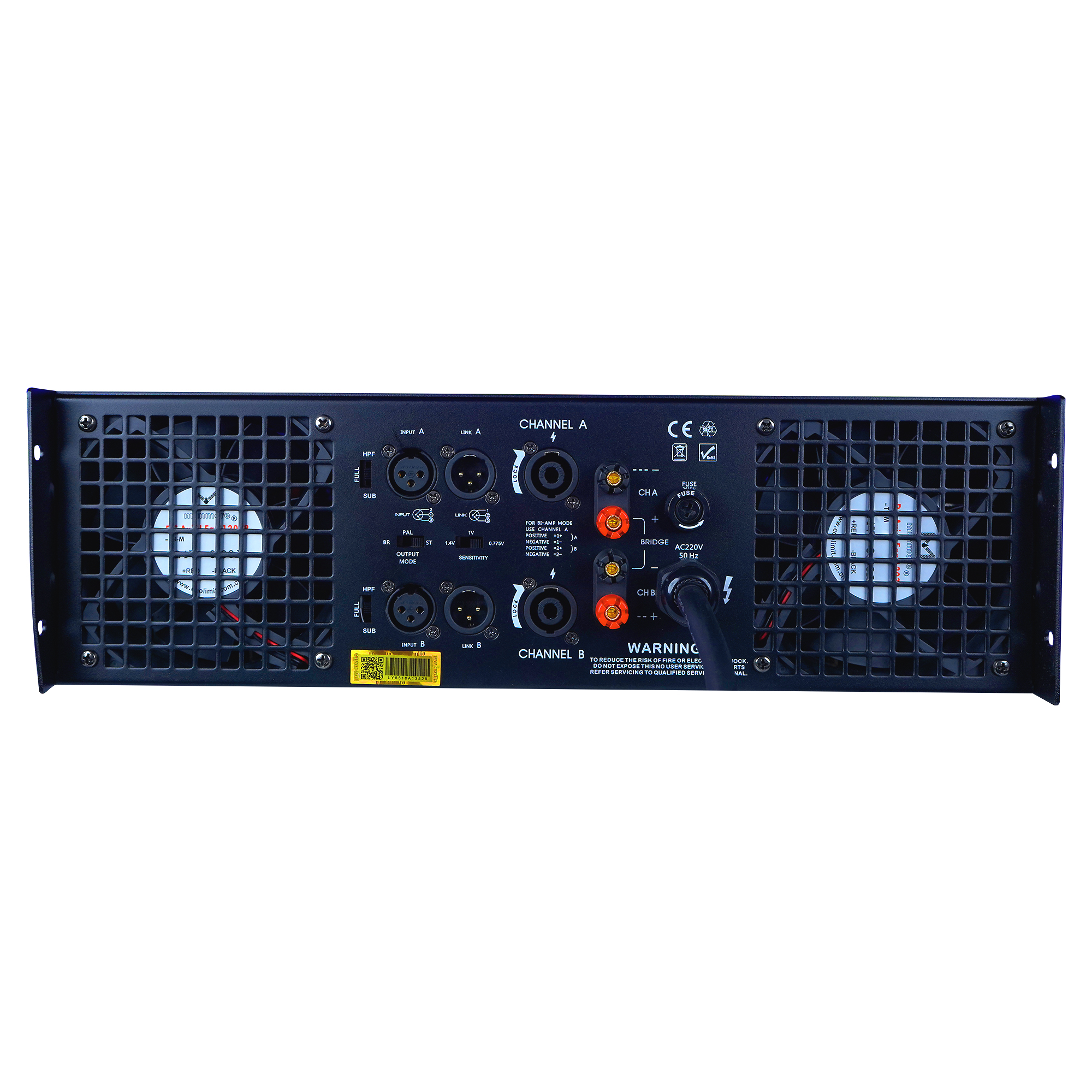

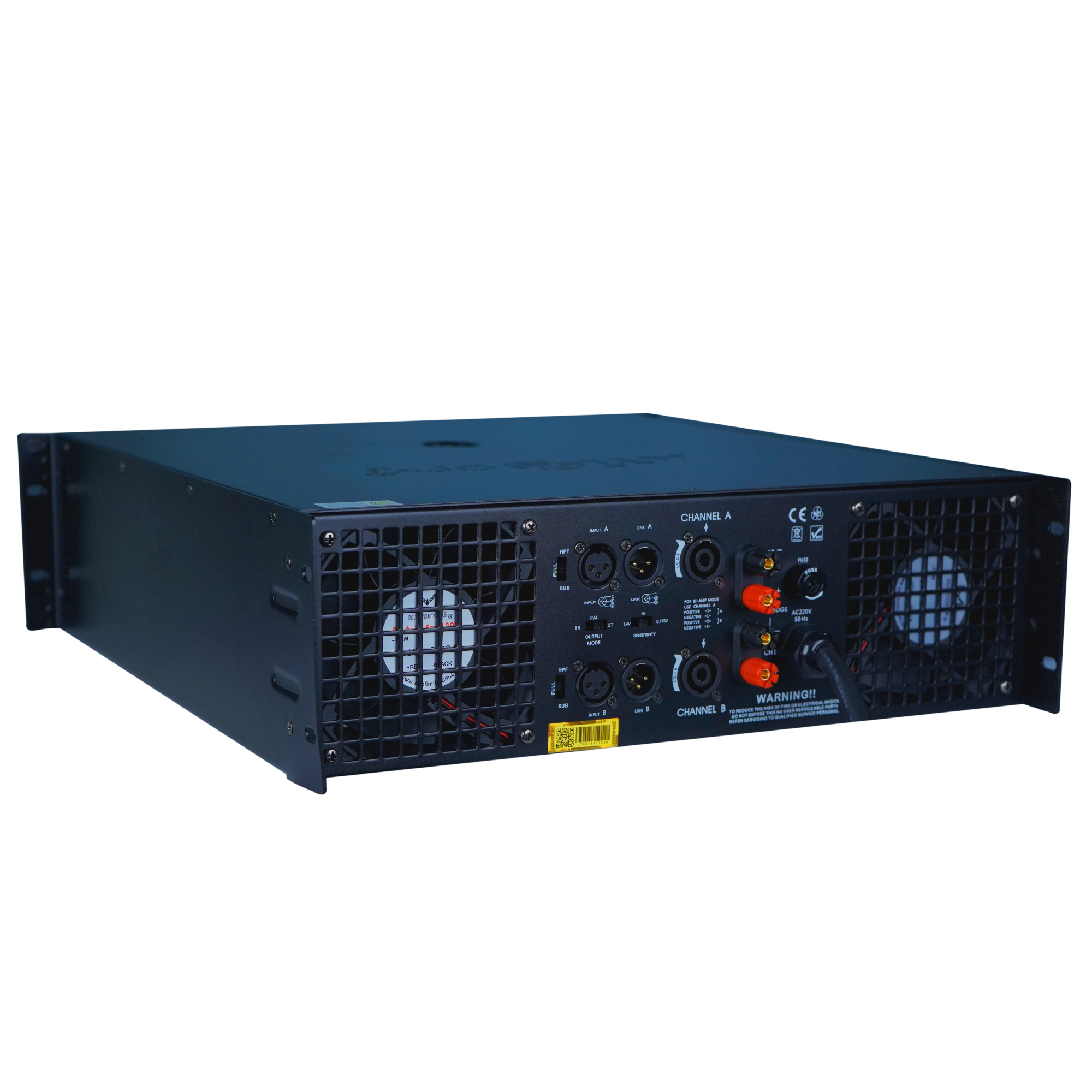

Output Connectors 2 × Neutrik NL4 Sockets, 2 × Binding Posts
Protection Short Circuit, Soft Start, Over Current, Over Heat, DC, Clipping & Limiting, VHF Protection
Operating Voltage 110V / 220V, 50/60Hz
Fuse F-40A
Idle Power Consumption < 100W
Max Power Consumption < 5500W
Circuit Type Class TD
Dimensions (L×W×D) 495 × 483 × 132 mm (3U)
Package Dimensions (L×W×D) 683 × 635 × 208 mm
Net Weight 36 kg
Gross Weight 39 kg
Share On

Description

Product Highlights

  • High-Power Class TD Professional Amplifier
  • 7600W Bridge Output @ 4Ω
  • 3800W × 2 Output @ 2Ω Stereo
  • Ultra-High Damping Factor > 5200
  • Wide Frequency Response: 10Hz – 20kHz
  • Advanced Protection Circuitry
  • Balanced XLR Inputs
  • Professional Neutrik NL4 Speaker Outputs
  • Low Distortion & High Signal Clarity
  • Rugged 3U Chassis for Professional Applications

Applications

Ideal for:

  • Professional DJ Sound Systems
  • Live Sound Reinforcement
  • Concert & Event Production
  • Clubs & Discotheques
  • Auditoriums
  • Rental Sound Companies
  • Large-Scale PA Systems
  • Touring Audio Applications
