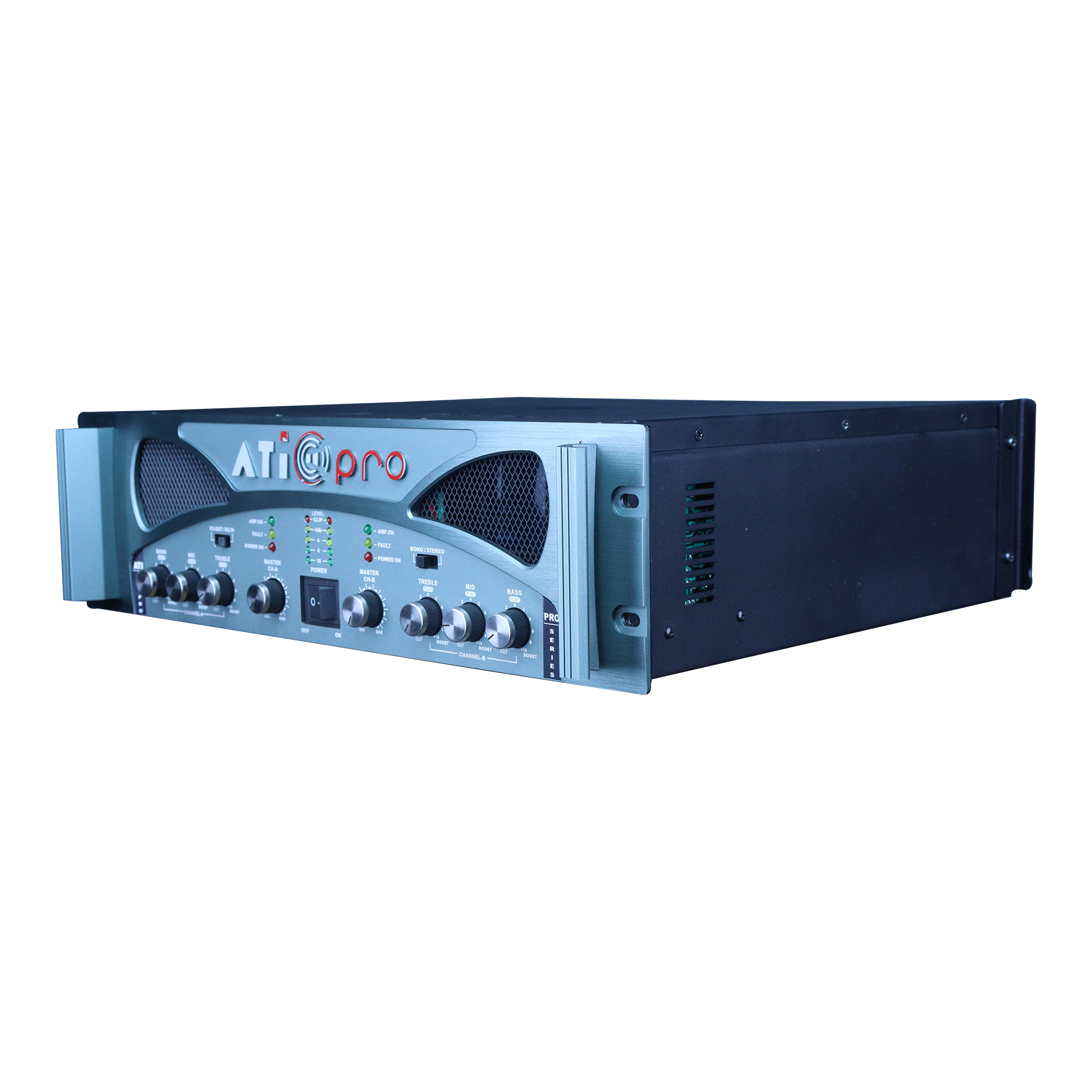

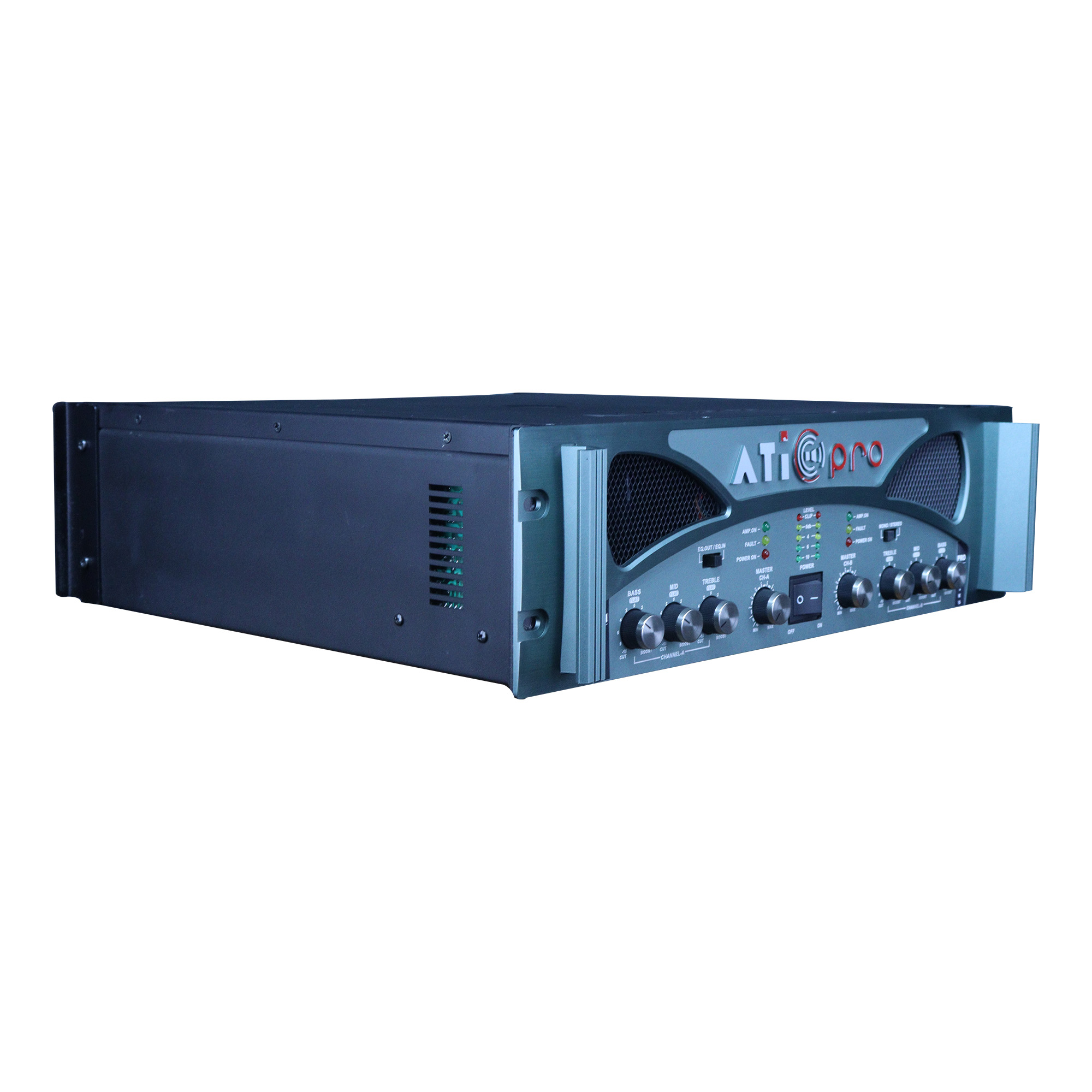

ATI 2K2 PRO Professional Power Amplifier
Powerful Performance for Professional Sound Applications
The ATI 2K2 PRO is a high-performance professional power amplifier designed to deliver reliable output, exceptional sound clarity, and long-lasting durability for DJs, live events, rental setups, auditoriums, clubs, and professional sound reinforcement systems. Built with advanced protection circuitry and efficient cooling, the ATI 2K2 PRO ensures stable operation even during demanding applications.
Whether you’re powering full-range speakers, monitor systems, or subwoofers, the ATI 2K2 PRO provides the power, control, and reliability needed for professional audio performance.
Key Features
- High-power dual-channel professional amplifier
- Selectable crossover in both channels
- Built-in Low Pass Filter (100Hz)
- Advanced protection against Temperature, DC, and Short Circuit
- High damping factor for tighter bass response
- Low distortion output for crystal-clear audio
- Speakon and terminal output connectivity
- XLR balanced input connections
- Dual fixed-speed cooling fans for efficient heat management
- Suitable for DJs, live sound, rental companies, auditoriums, and stage applications
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | ATI 2K2 PRO |
| AC Mains | 240V |
| Power Consumption | 3000VA |
| Rated Output @ 2 Ohms | 1100W + 1100W |
| Rated Output @ 4 Ohms | 750W + 750W |
| Rated Output @ 8 Ohms | 475W + 475W |
| Rated Output @ 4 Ohm Bridge Mode | 2200W |
| Total Harmonic Distortion (THD) | 0.9% |
| Frequency Response | 20Hz – 20,000Hz |
| Input Sensitivity | 1 – 1.2V Unbalanced |
| Damping Factor | 400:1 (8 Ohms) |
| Input Impedance | 10kΩ |
| Signal-to-Noise Ratio | 90dB |
| Low Pass Filter | 100Hz |
| Input Connections | 2 Male + 2 Female XLR |
| Cooling System | 2 Fixed-Speed Fans |

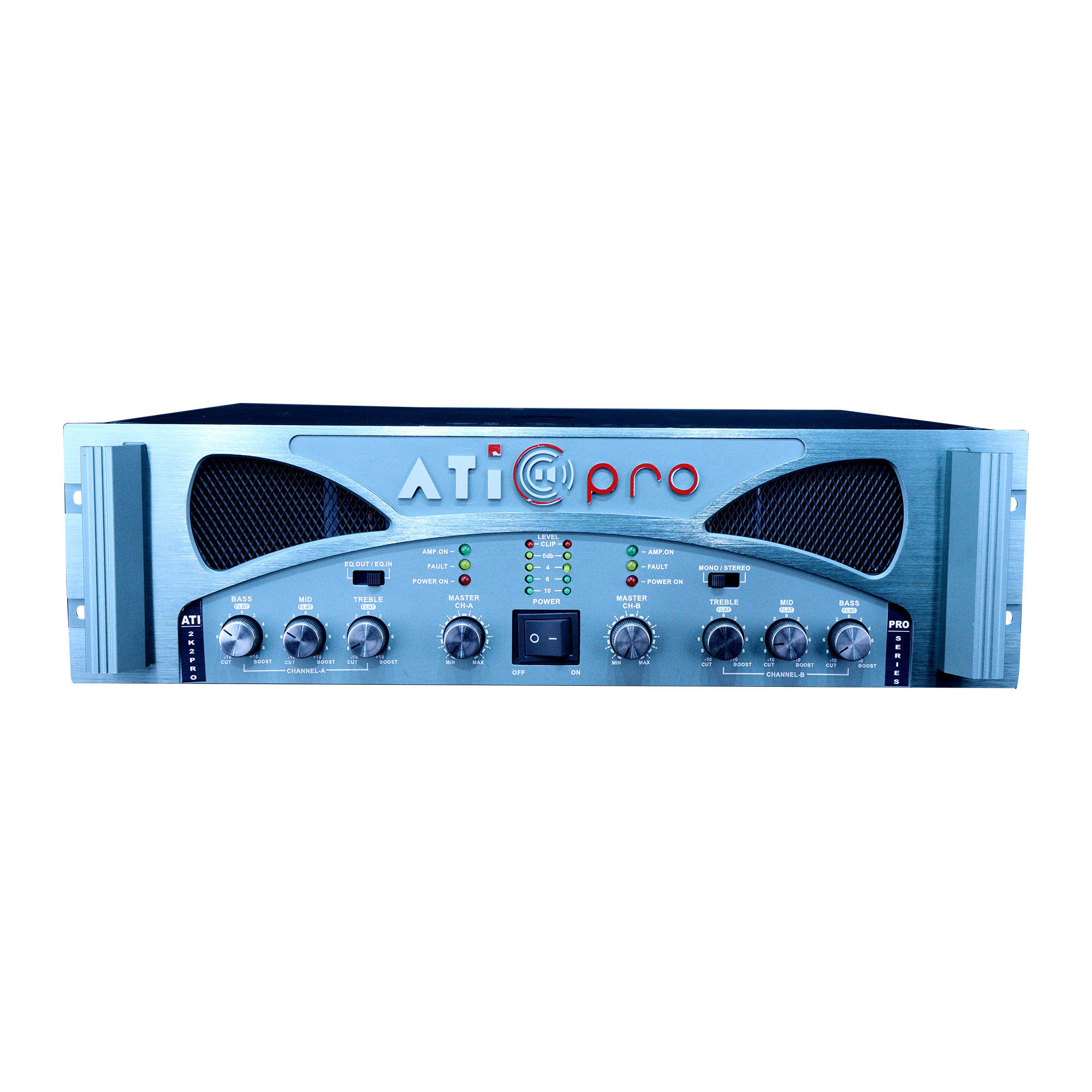

| Front Panel Controls | 2 × 41-Step Level Controls |

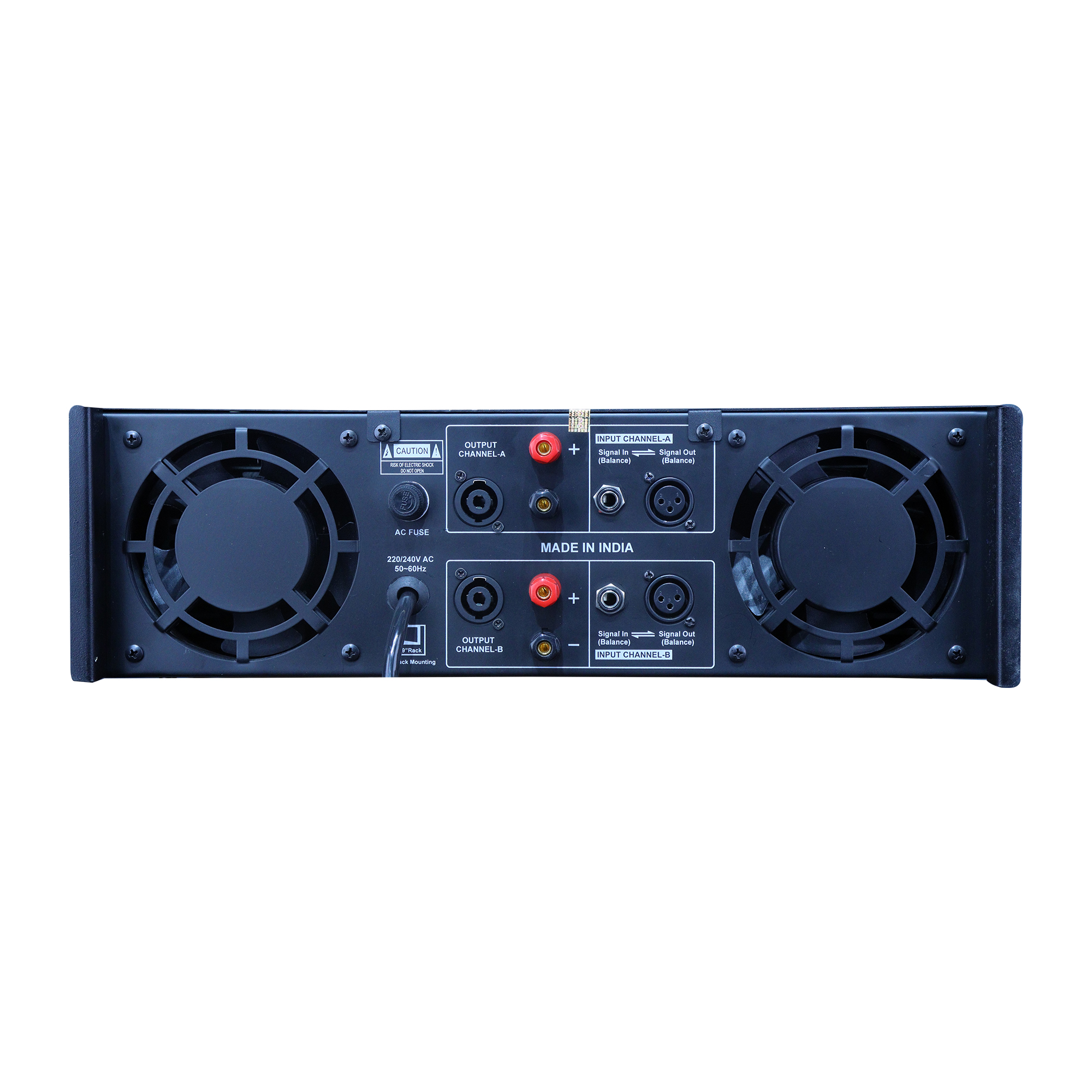

| Output Connections | 2 × 4-Way Speakon & Terminal |
| Protection | Temperature, DC & Short Circuit Protection |
Applications
- DJ Sound Systems
- Live Events & Concerts
- Stage Sound Reinforcement
- Rental Sound Systems
- Auditoriums & Banquet Halls
- Clubs & Entertainment Venues
- Professional PA Systems
