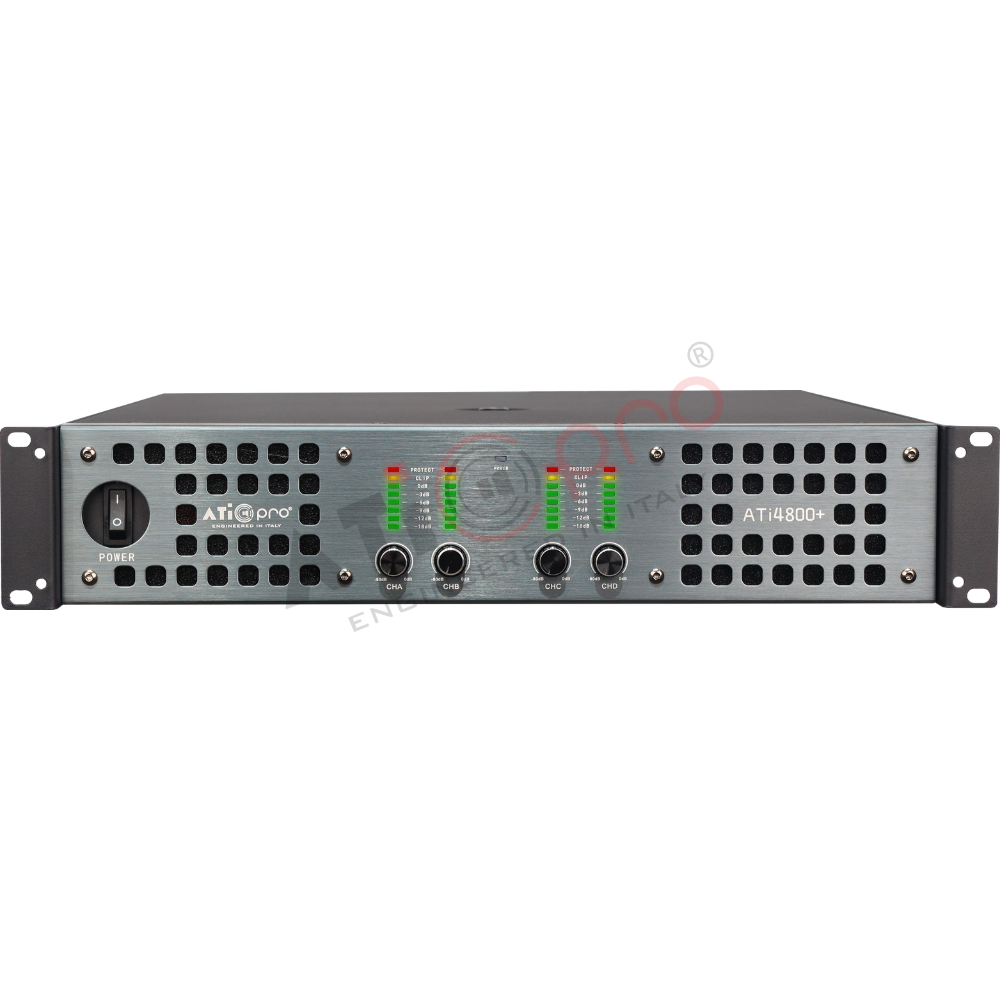

ATI 4800+ Power Amplifier Features and Specifications
- Power Output: Delivers 1000 Watt per channel at 8Ω stereo, 1200 Watt per channel at 4Ω stereo, 2000 Watt per channel at 8Ω bridge mono, and 3200 Watt per channel at 4Ω bridge mono.
- Frequency Response: Offers a wide frequency range from 20Hz to 20kHz for high-quality audio reproduction.
- Signal-to-Noise Ratio: Features a signal-to-noise ratio of over 80dB for clear, noise-free sound.
- Total Harmonic Distortion (THD+N): Maintains a low THD+N of less than 0.05% at 8Ω and 1kHz input for high fidelity.
- Damping Factor: Ensures superior control over speakers with a damping factor greater than 800 at 8Ω and 1kHz.
- Slew Rate: Supports high-speed audio response with a slew rate of over 20V/μs.
- Input Sensitivity: Offers selectable input sensitivities of 0.775V, 1.0V, and 1.4V to accommodate different audio sources.
- Output Topology: Utilizes Class H technology for efficient power output with minimal heat generation.
- Input Connectors: Equipped with 3-pin XLR electronically balanced connectors for reliable signal transmission.
- Link Connectors: Features XLR, 3-pin male link connectors for easy daisy-chaining with other amplifiers.
- Input Impedance: Provides 20KΩ balanced and 10KΩ unbalanced input impedance for versatile compatibility.
- Amplifier Protection: Includes comprehensive protection features against short circuits, open circuits, overheating, overload, and DC signals to ensure safe operation.
