Description

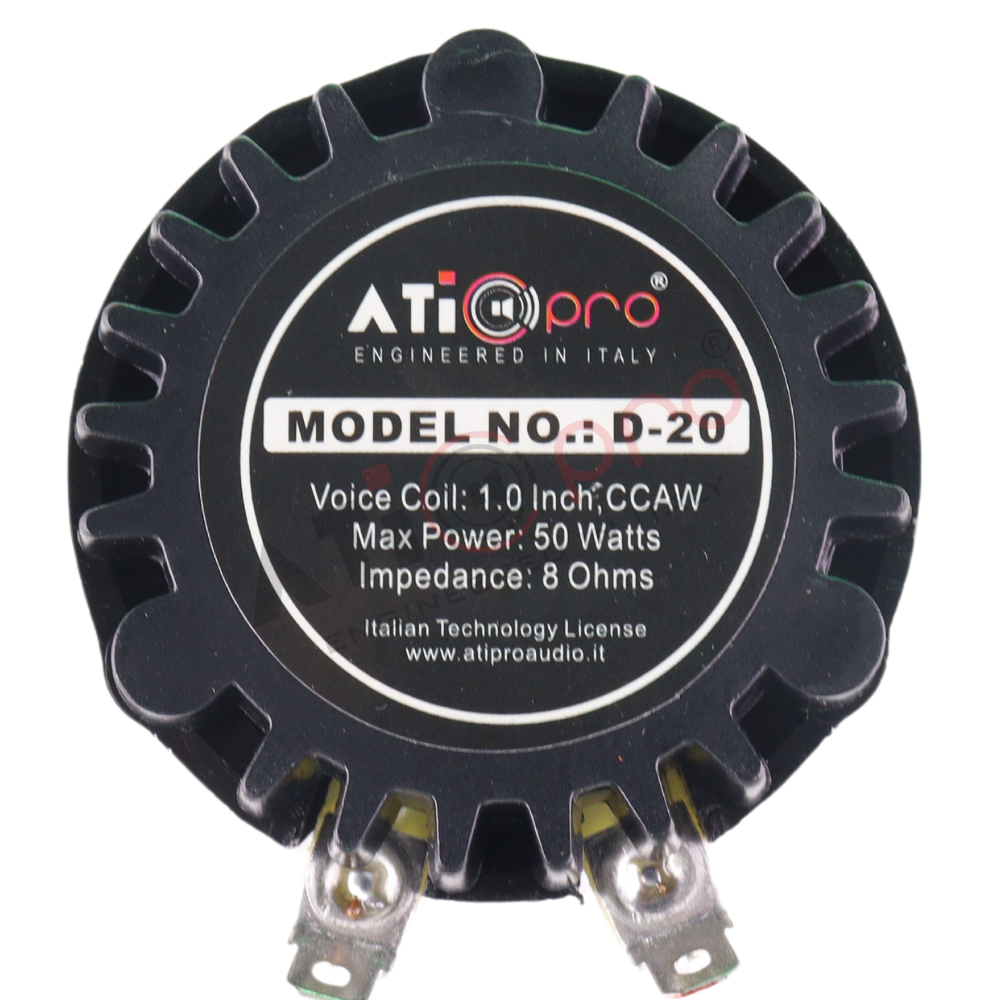

- The Neodymium HF Compression Driver Model ATI D-20 is designed for high-performance audio applications, offering outstanding sound quality and reliability.
- Model: ATI D20
- Throat: The driver features a 1-inch throat, ideal for precise sound reproduction in high-frequency ranges.
- Nominal Impedance: The driver operates at a nominal impedance of 8 Ohms, providing compatibility with a wide range of audio equipment.
- Nominal Power Handling: With a nominal power handling of 20 Watts, the D-20 can handle moderate levels of audio power.
- Continuous Power Handling: The driver is capable of continuous power handling up to 40 Watts, ensuring it can perform at higher outputs without compromising on sound quality.
- Sensitivity (1W/1M): The D-20 boasts a high sensitivity of 105 ± 2 dB, making it highly efficient in converting electrical power into sound.
- Frequency Range (-10dB Max): This driver covers a wide frequency range from 1500 Hz to 20000 Hz, ensuring clarity and precision across high frequencies.
- Voice Coil Diameter: It features a 1-inch voice coil, enhancing durability and improving sound accuracy.
- Voice Coil Material: The voice coil is made from copper-clad aluminum Wire (CCAW), providing excellent conductivity and heat resistance.
- Voice Coil Former: A Kapton former is used for the voice coil, contributing to the driver’s durability and maintaining performance even under high temperatures.
- Diaphragm Material: The diaphragm is constructed from a combination of Titanium and Phenolic, offering a balance of lightness, strength, and rigidity for superior sound clarity.
- Magnet Type: The driver utilizes a Neodymium inside slug magnet, known for its strong magnetic field and compact design.
- Magnet Size: The magnet measures 24mm in size, optimizing the driver’s efficiency and performance.
- Cover (or Adaptor) Material: The cover or adaptor is made of durable plastic, ensuring a lightweight and protective enclosure for the components.
