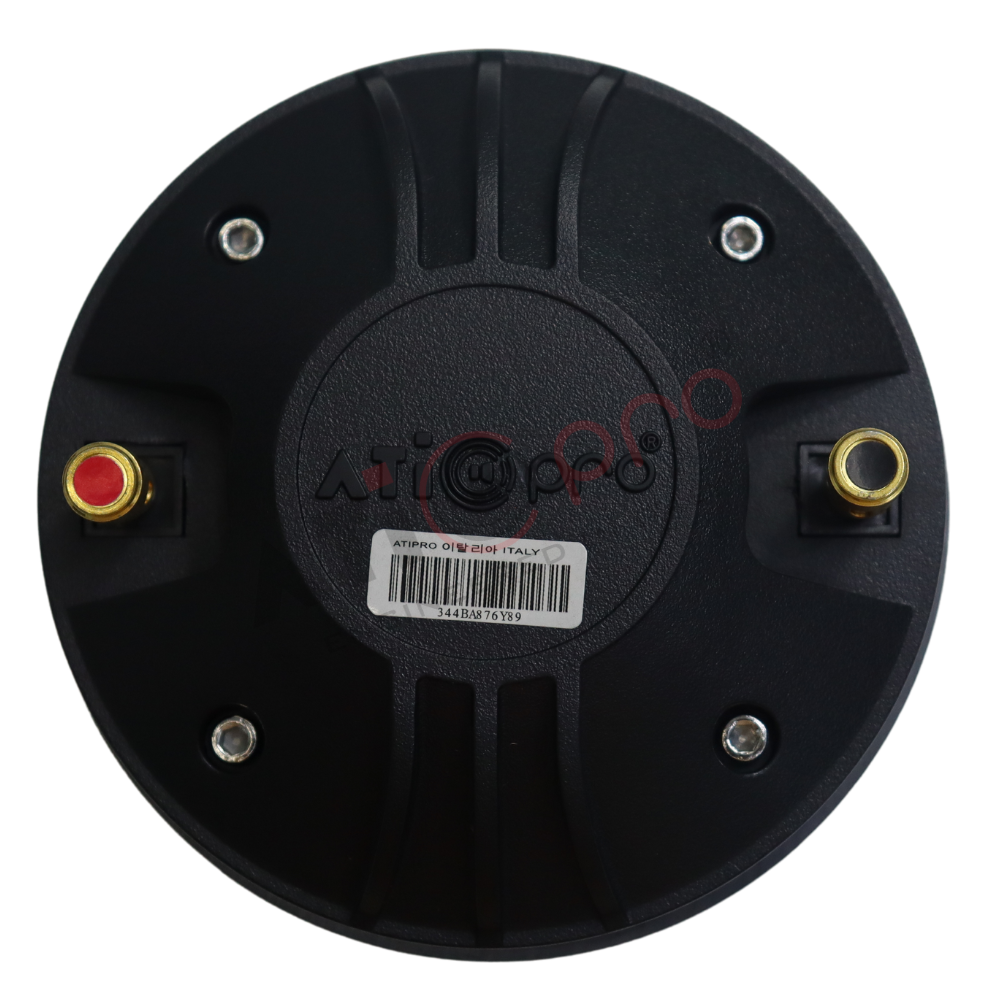

Ferrite HF Driver 60 Watt Model ATI A450

Throat – 1 inch
Nominal Impedance – 8 ohm
Nominal Power Handling – 60 watt
Continuous Power Handling – 120 watt
Sensitivity(1W/1m) – 110+- 2dB
Frequency Range – (-10dB max) 1200Hz-20KHz
Voice Coil Diameter – 1.75 inch
Voice Coil Material – CCAW
Former Material – Kapton
Diaphragm Material – Titanium
Magnet Type Strontium – Strontium Ferrite
Magnet Sizes  – 115 mm
Cover(or Adaptor) Material –  Plastic

Share On
Technology
  • Sound Magnet
  • Voice Sugar

Description

  • Throat – 1 inch
    Nominal Impedance – 8 ohm
    Nominal Power Handling – 60 watt
    Continuous Power Handling – 120 watt
    Sensitivity(1W/1m) – 110+- 2dB
    Frequency Range – (-10dB max) 1200Hz-20KHz
    Voice Coil Diameter – 1.75 inch
    Voice Coil Material – CCAW
    Former Material – Kapton
    Diaphragm Material – Titanium
    Magnet Type Strontium – Strontium Ferrite
    Magnet Sizes  – 115 mm
    Cover(or Adaptor) Material –  Plastic
