Description

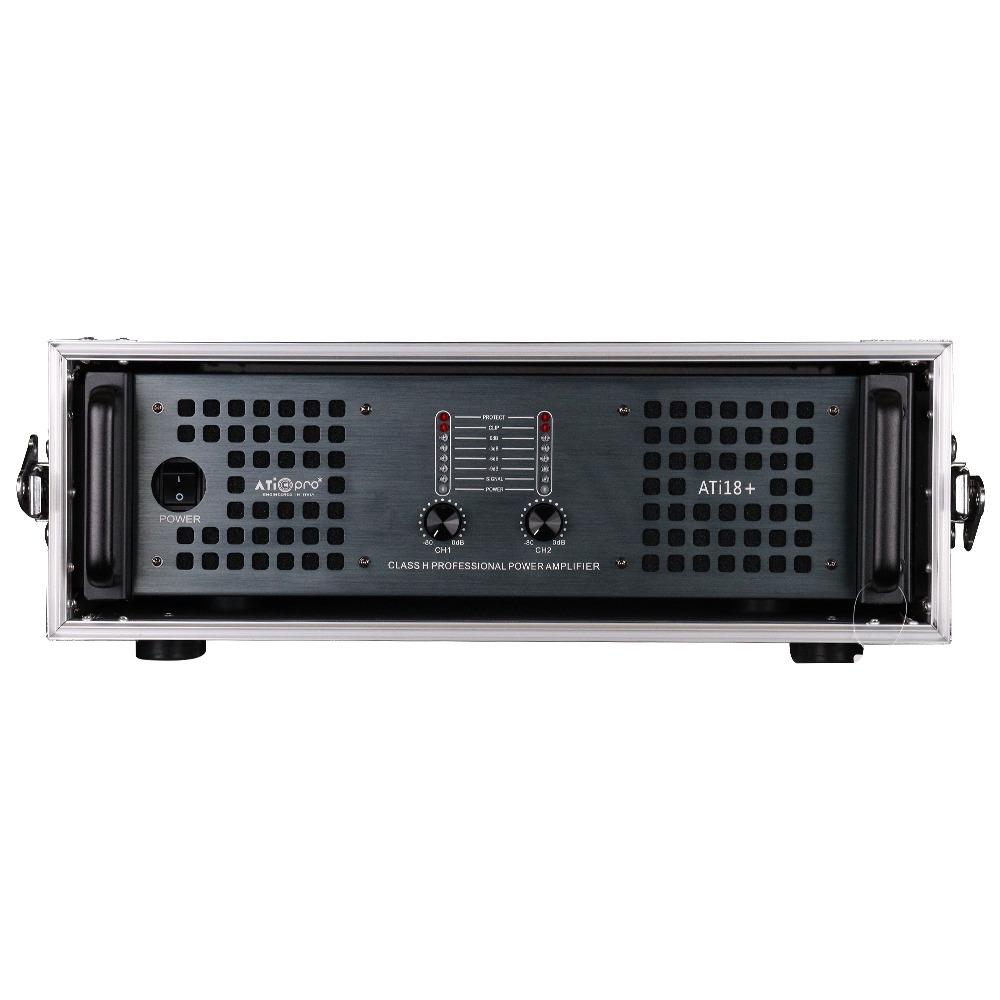

ATI 18+ Power Amplifier Features and Specifications
- Stereo Power Output: Delivers 2x1250W at 8Ω, 2x1725W at 4Ω, and 2x2300W at 2Ω for powerful sound performance.
- Bridge Mono Power: Provides 3450W at 8Ω and 4600W at 4Ω in bridge mono mode for enhanced output.
- Signal-to-Noise Ratio: Achieves a signal-to-noise ratio of >80dB, ensuring clear and crisp audio quality.
- THD+N: Total harmonic distortion plus noise is kept under <0.05%, ensuring minimal sound distortion.
- Damping Factor: Maintains a damping factor greater than >1500 at 8Ω and 1kHz, optimizing speaker control and response.
- Slew Rate: Features a slew rate of >20V/µs for faster signal processing and clean audio reproduction.
- Input Sensitivity: Offers selectable input sensitivity of 0.775V, 1.0V, and 1.4V to accommodate different input sources.
- Output Circuit: Utilizes Class H circuitry for efficient power delivery and reduced heat generation.
- Frequency Response: Covers a broad frequency range of 20Hz to 20kHz ±0.5dB, ensuring full-range sound reproduction.

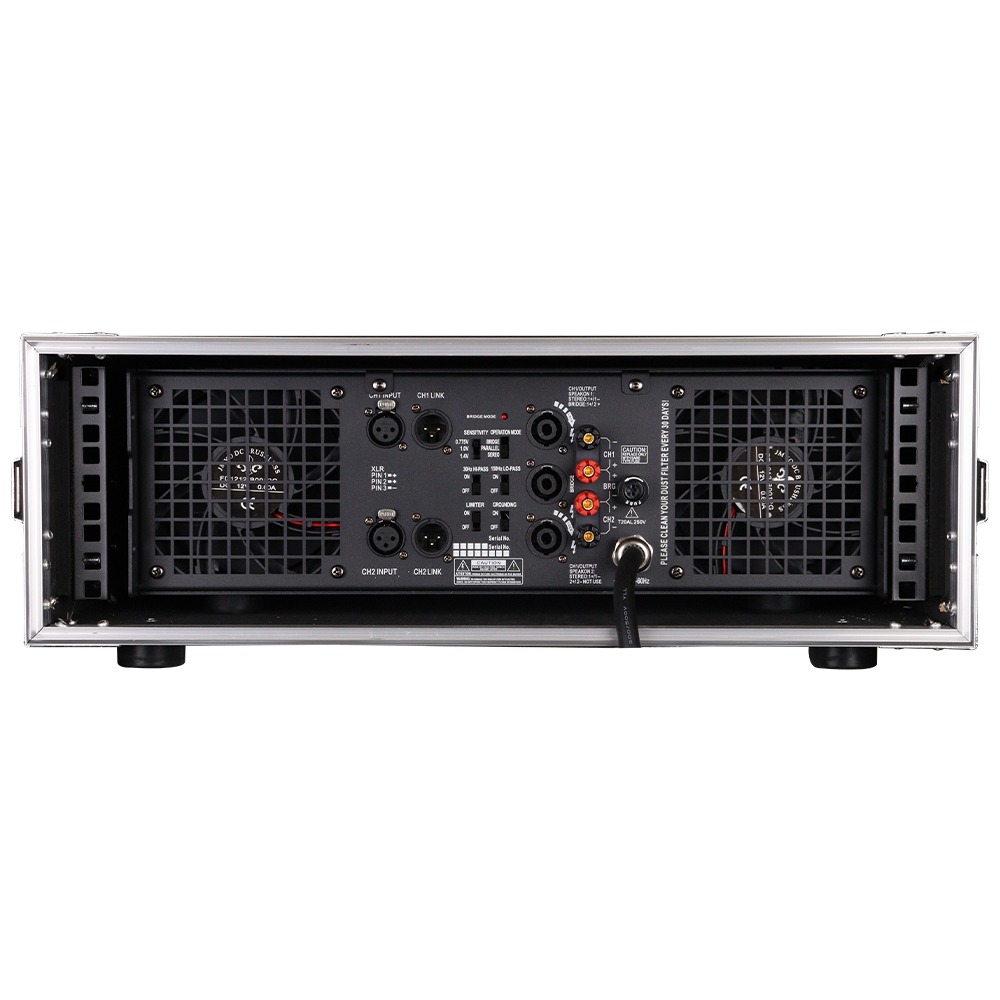

- Input Connectors: Equipped with 3-pin XLR electronically balanced connectors for reliable input connections.
- Link Connectors: Features XLR 3-pin male connectors for signal linking between devices.
- Input Impedance: Has a high input impedance of 20kΩ (balanced) and 10kΩ (unbalanced) for superior compatibility.
- Output Connectors: Includes Neutrik output connectors for secure and professional speaker connections.
- Amplifier Protection: Offers comprehensive protection features, including short circuit, open circuit, overheat, overload, DC, and supersonic frequency safeguards.

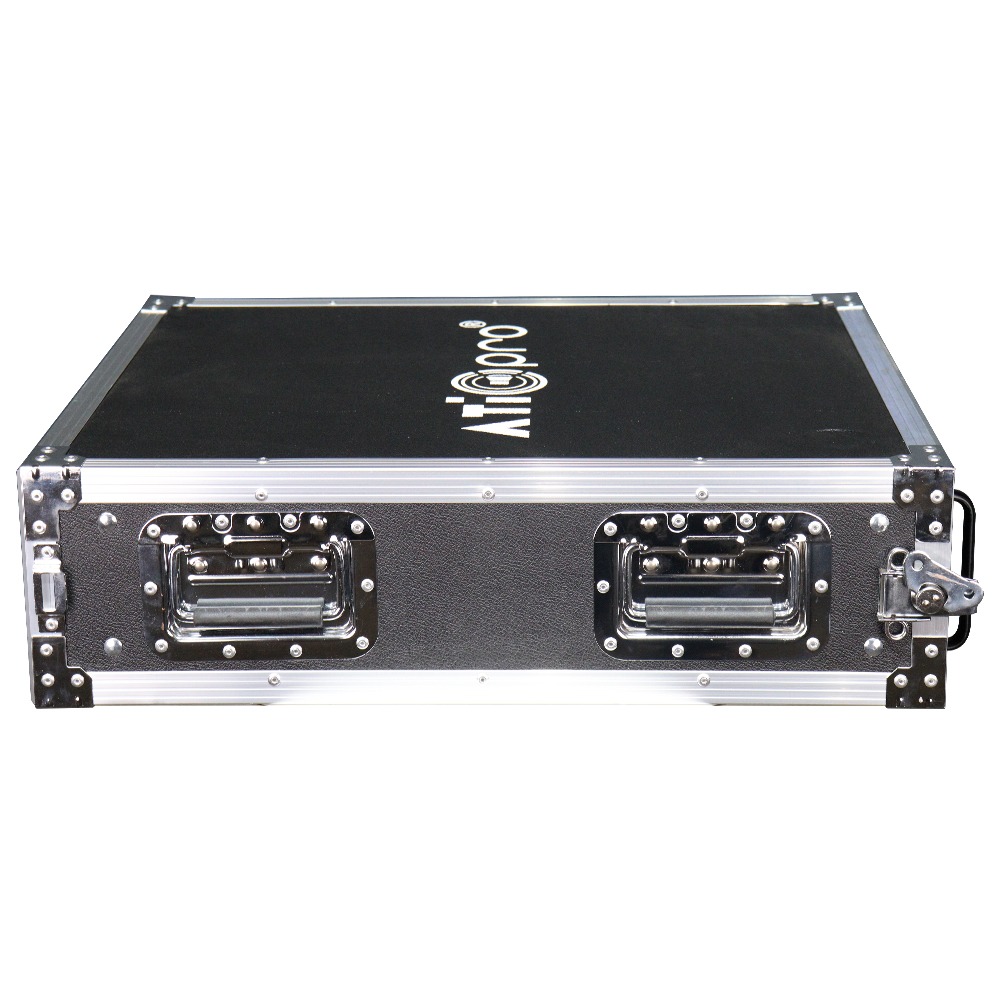

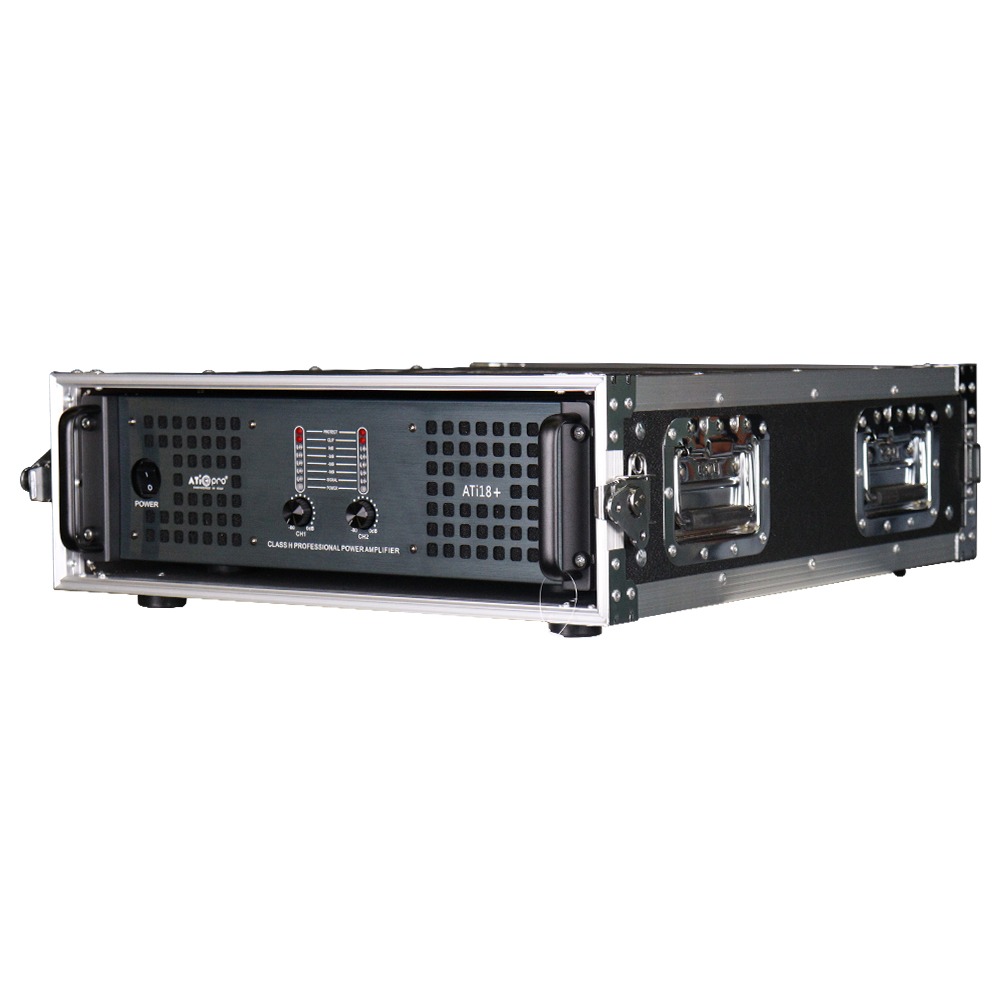

- Transport Dimensions: The amplifier measures 67.5 x 57 x 19 cm (3U), making it suitable for standard rack mounting.
- Weight: Weighs 48kg, providing a robust build for demanding audio applications.
