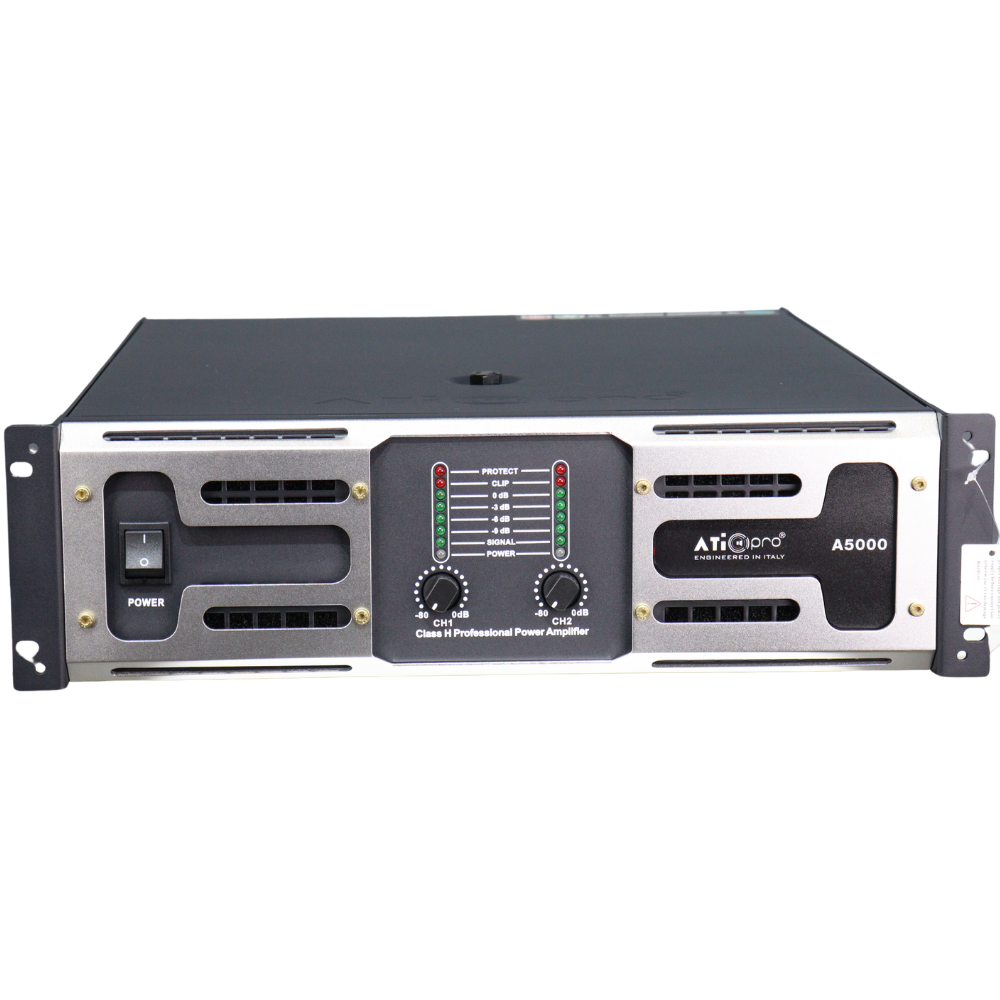

DJ Amplifier 4600 Watt Model ATI A5000

Description

ATI A5000 DJ Power Amplifier Features and Specifications

• High Power Output: Delivers 1250W per channel at 8Ω stereo, 1725W per channel at 4Ω stereo and 2300W per channel at 2Ω stereo, providing strong performance for professional setups.
• Bridged Power: Offers 3450W in 8Ω Bridge Mono mode and 4600W in 4Ω Bridge Mono mode, making it ideal for high-demand applications and large venues.
• Wide Frequency Response: Operates within 20Hz–20kHz (±0.5dB), ensuring detailed and accurate sound reproduction across the full spectrum.
• Low Noise Performance: Boasts a signal-to-noise ratio greater than 80dB, maintaining clean and clear audio output.
• Minimal Distortion: Features THD+N below 0.05% at 8Ω, 1kHz, and 1/4 output, ensuring distortion-free sound even at high power.
• Strong Damping Factor: With a damping factor above 1500 at 8Ω and 1kHz, it provides excellent speaker control and deep, tight bass response.
• Fast Slew Rate: A slew rate greater than 20V/µs ensures rapid signal processing for dynamic and detailed sound.
• Adjustable Input Sensitivity: Selectable input sensitivity levels of 0.775V, 1.0V, and 1.4V allow compatibility with various mixers and audio devices.
• Efficient Class H Circuitry: Incorporates Class H amplification for high efficiency, lower heat, and stable high-power output.

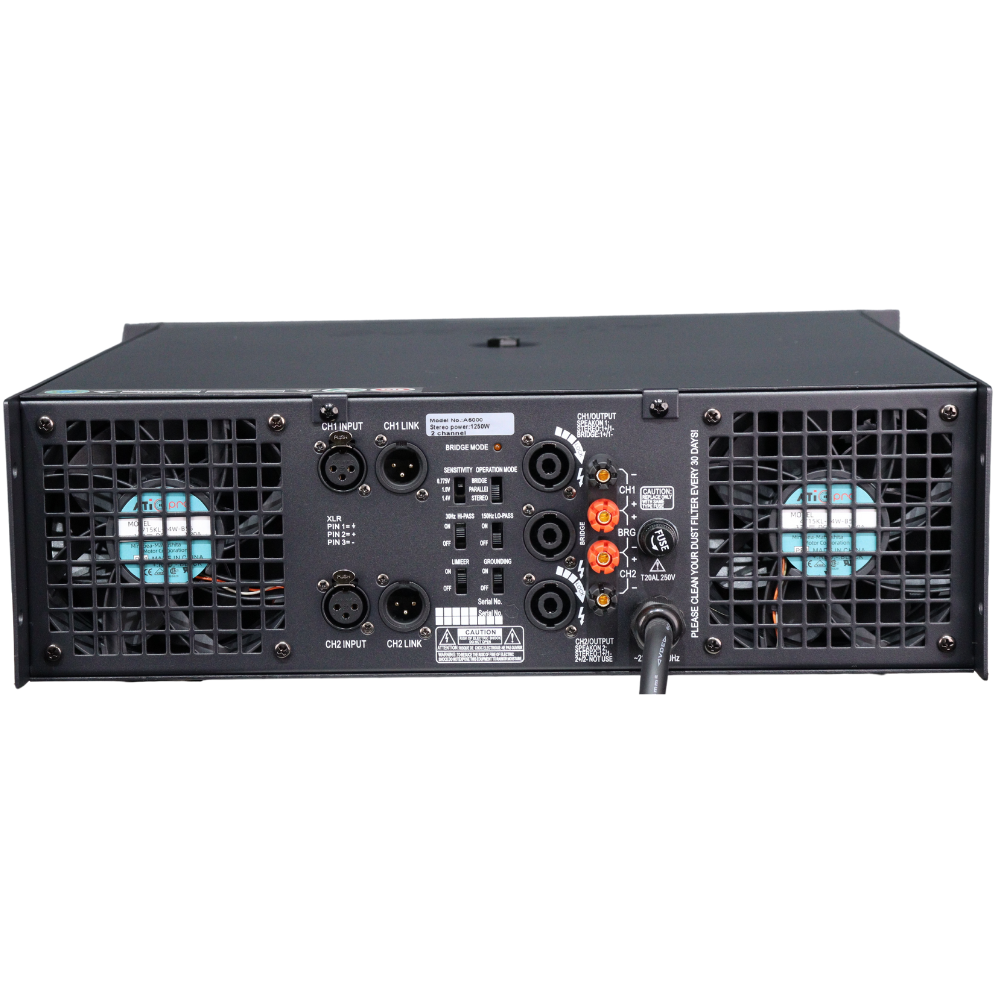

• Professional Connectivity: Comes with 3-pin XLR electronically balanced inputs and 3-pin male XLR link connectors for seamless system integration.
• Flexible Input Impedance: Supports 20kΩ balanced and 10kΩ unbalanced inputs for versatile signal handling.
• Durable Output Connections: Equipped with NEUTRIK output connectors for reliable and secure speaker connections.
• Comprehensive Protection System: Safeguards against short circuit, open circuit, overheating, overload, DC faults and ultrasonic frequencies for reliable performance.
• Compact & Rugged Design: 3U rackmount size with transport dimensions of 67.5 × 57 × 19 cm, net weight of 35 kg and gross weight of 39 kg, making it both powerful and portable.
