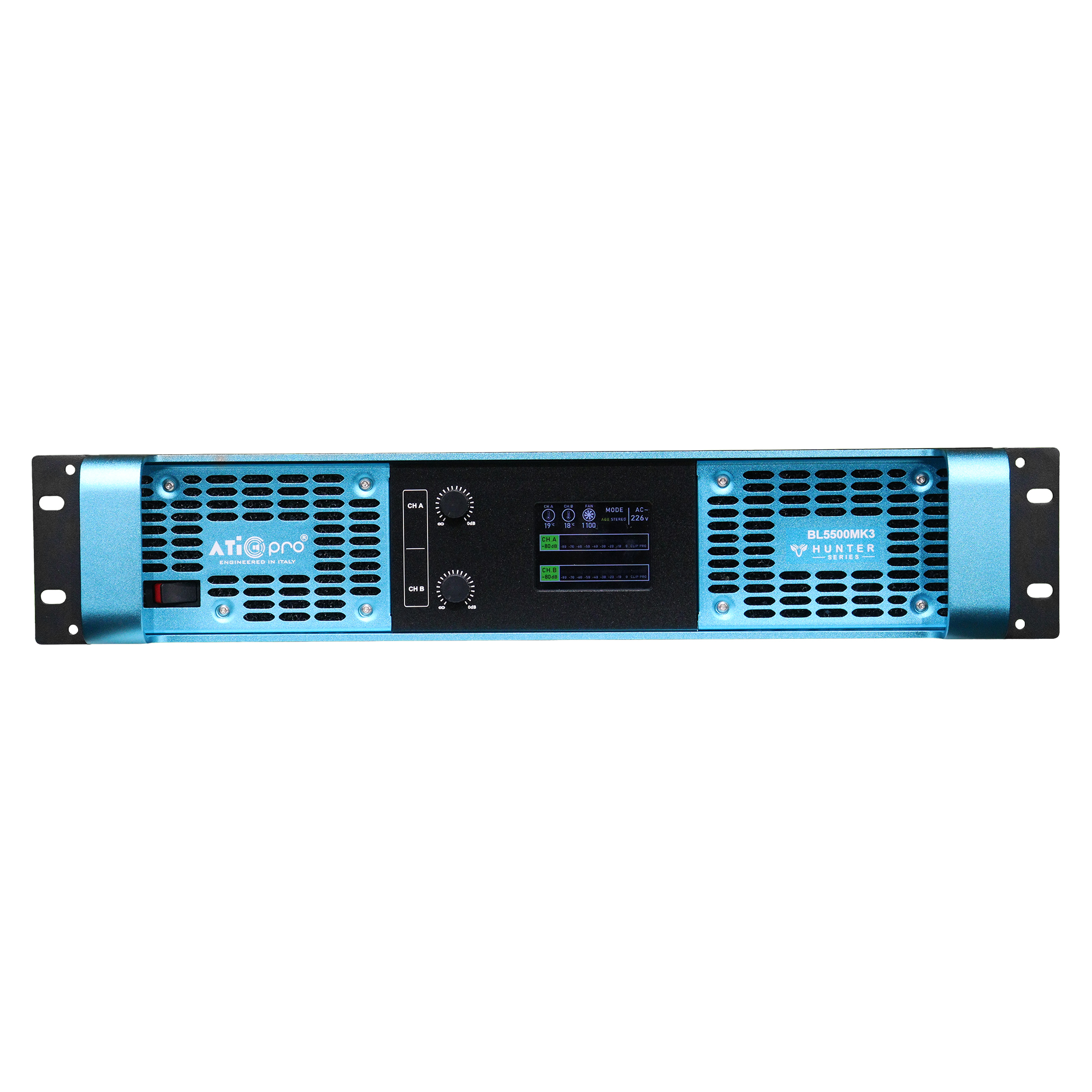

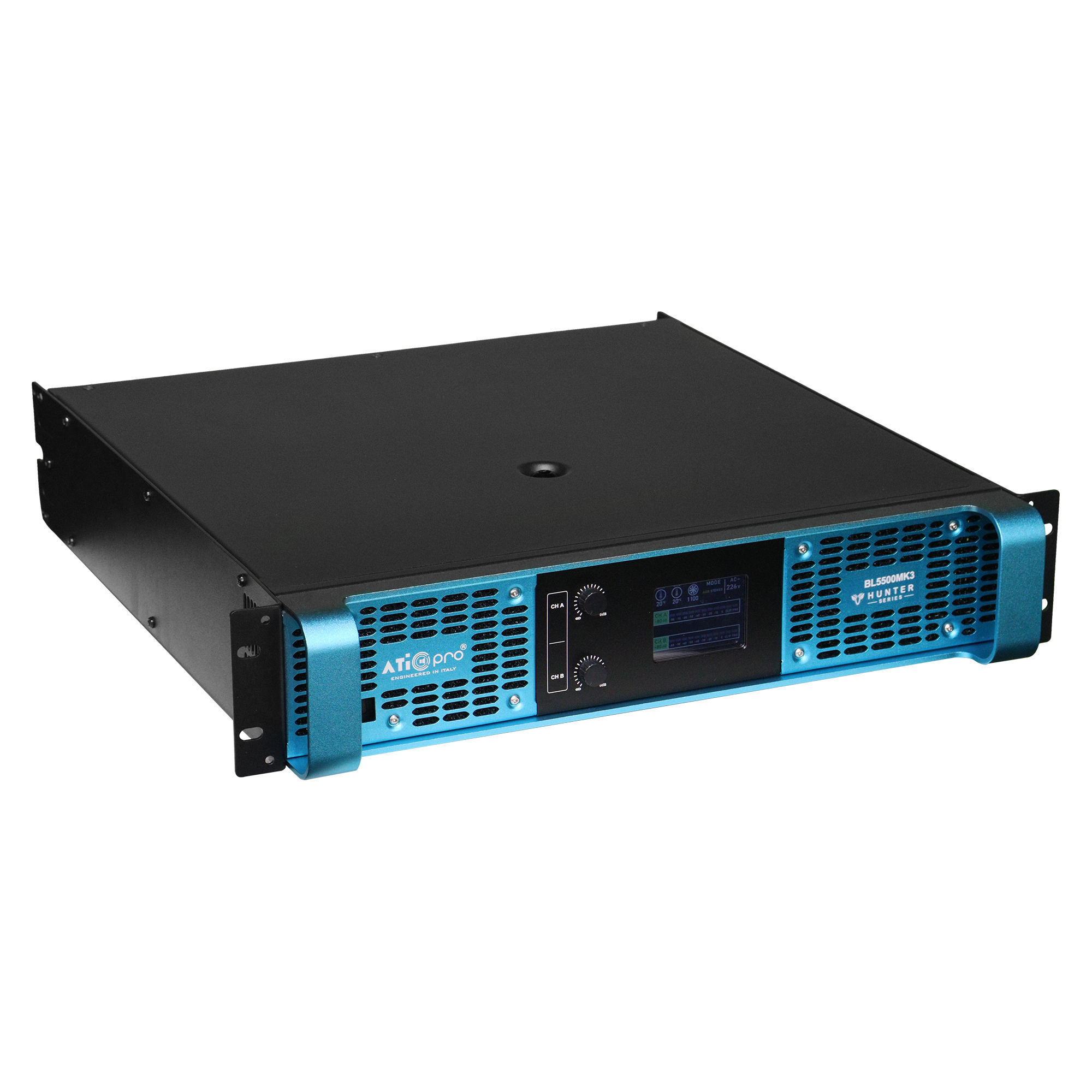

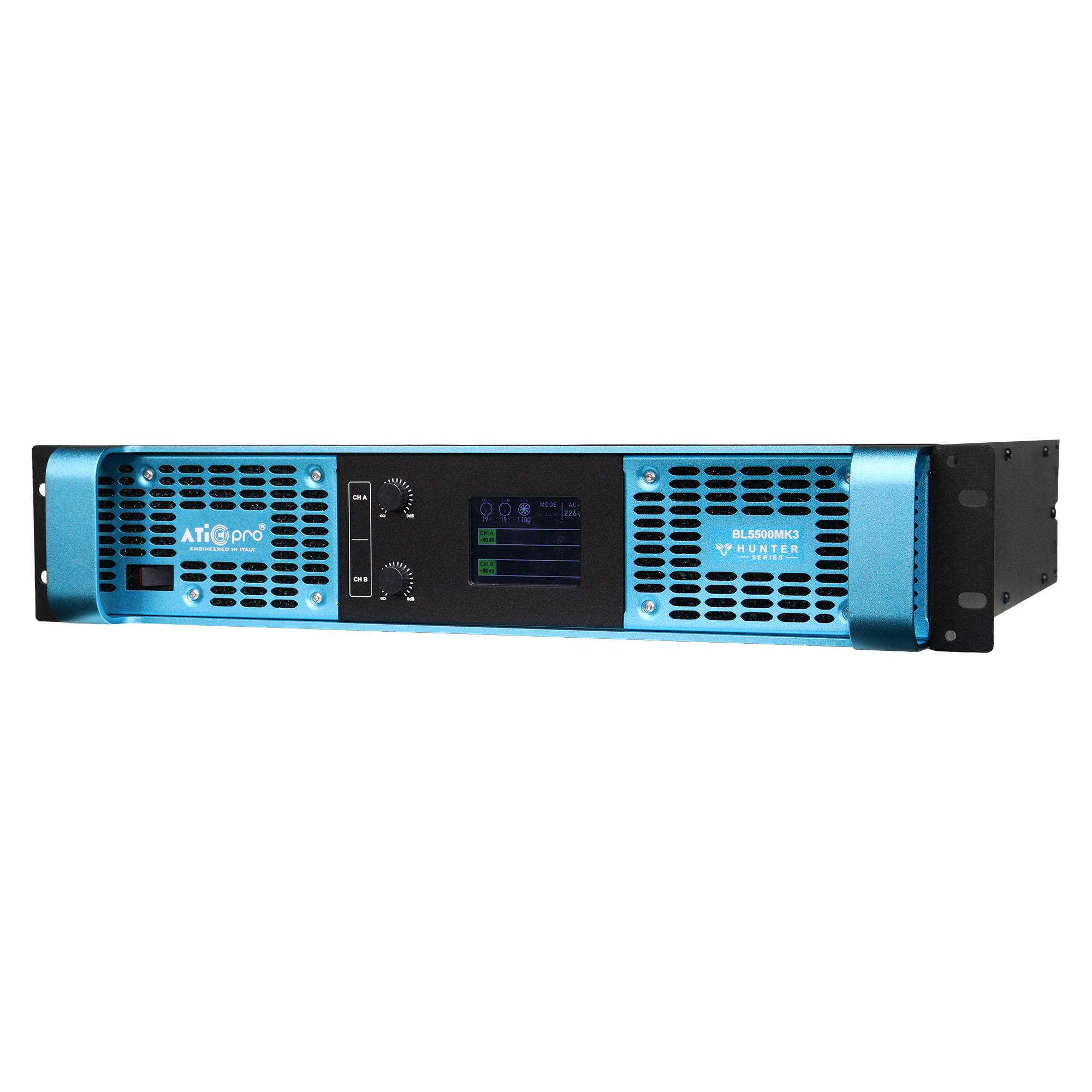

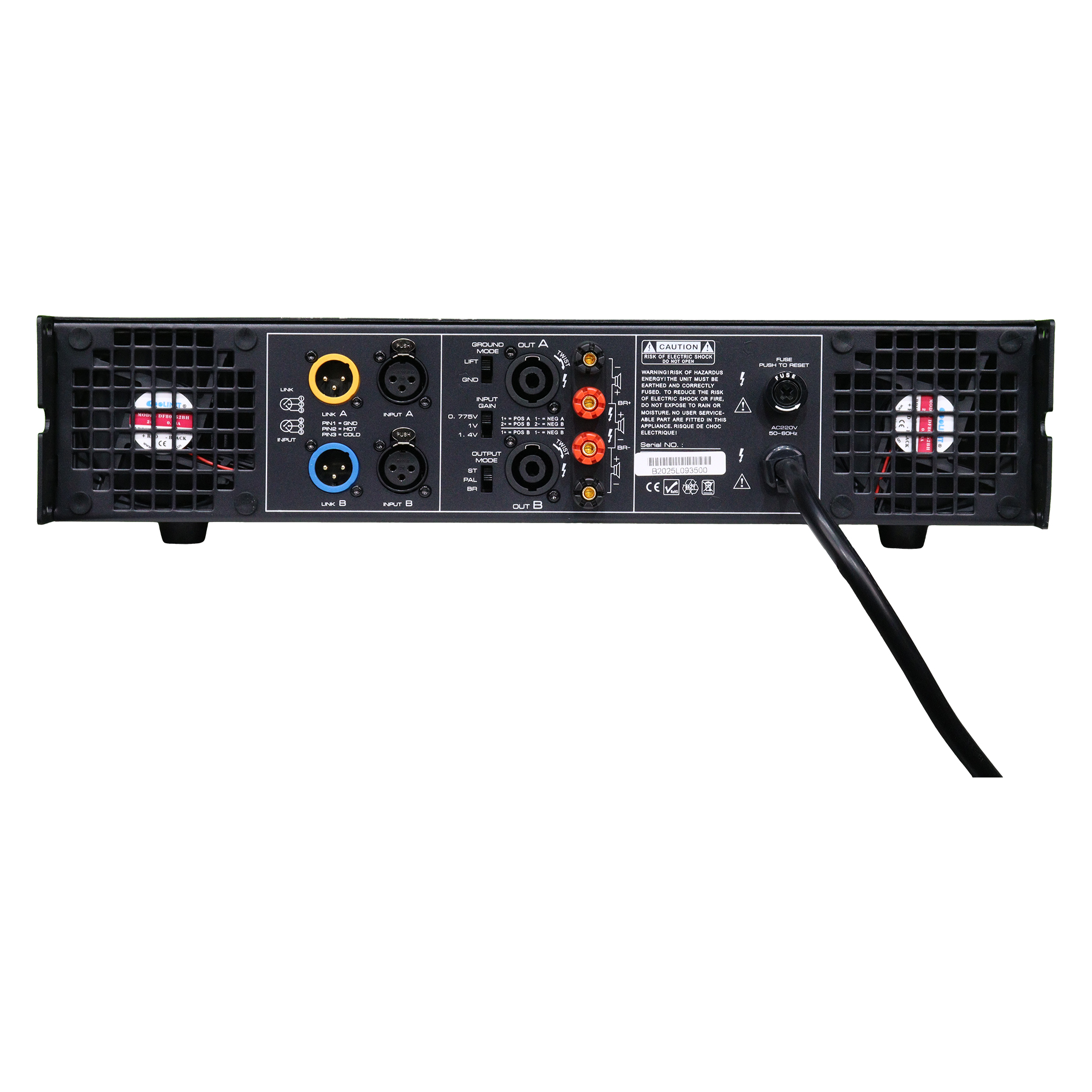

BL 5500 MK3 DJ Amplifier (2 Channel) 5400 Watt

Description

BL 5500 MK3 Professional Power Amplifier

The BL 5500 MK3 is a high-power Class H professional amplifier built for large-scale sound reinforcement where maximum output, control, and reliability are essential. Designed to drive heavy speaker loads with ease, it delivers exceptional power performance while maintaining clean, accurate audio across the full frequency range.

With stable 2-ohm operation, ultra-high damping factor, and a robust protection system, the BL 5500 MK3 is ideal for concerts, touring systems, nightclubs, auditoriums, and high-demand fixed installations. Its rugged 2U chassis and efficient thermal design ensure dependable performance even in the toughest environments.

Key Features

• High-efficiency Class H amplification for powerful and stable operation

• Massive output power with reliable 2-ohm load capability

• Clean, dynamic sound with >100 dB signal-to-noise ratio

• Extremely high damping factor (>3000 @ 8Ω) for precise bass control

• Selectable input sensitivity: 0.775V / 1V / 1.4V

• Advanced multi-stage protection for long-term reliability

• Heavy-duty 2U rack-mount chassis, ideal for touring and installation use

Power Output

• 8Ω Stereo: 2 × 1350 W

• 4Ω Stereo: 2 × 2400 W

• 2Ω Stereo: 2 × 2700 W

• 8Ω Bridge: 2700 W

• 4Ω Bridge: 4800 W

Technical Specifications

• Frequency Response: 10 Hz – 20 kHz

• S/N Ratio: >100 dB

• Damping Factor: >3000 (8Ω)

• Input Sensitivity: 0.775 V / 1 V / 1.4 V

• Operating Voltage: 110V / 220V

• Fuse: F-20A

• Protection: Short-Circuit, DC Overload, Overheat, Ultrasonic, RF, Voltage Peak Limit

• Dimensions: 483 × 436 × 90 mm (2U)

• Net Weight: 25.5 kg

• Gross Weight: 27.5 kg
