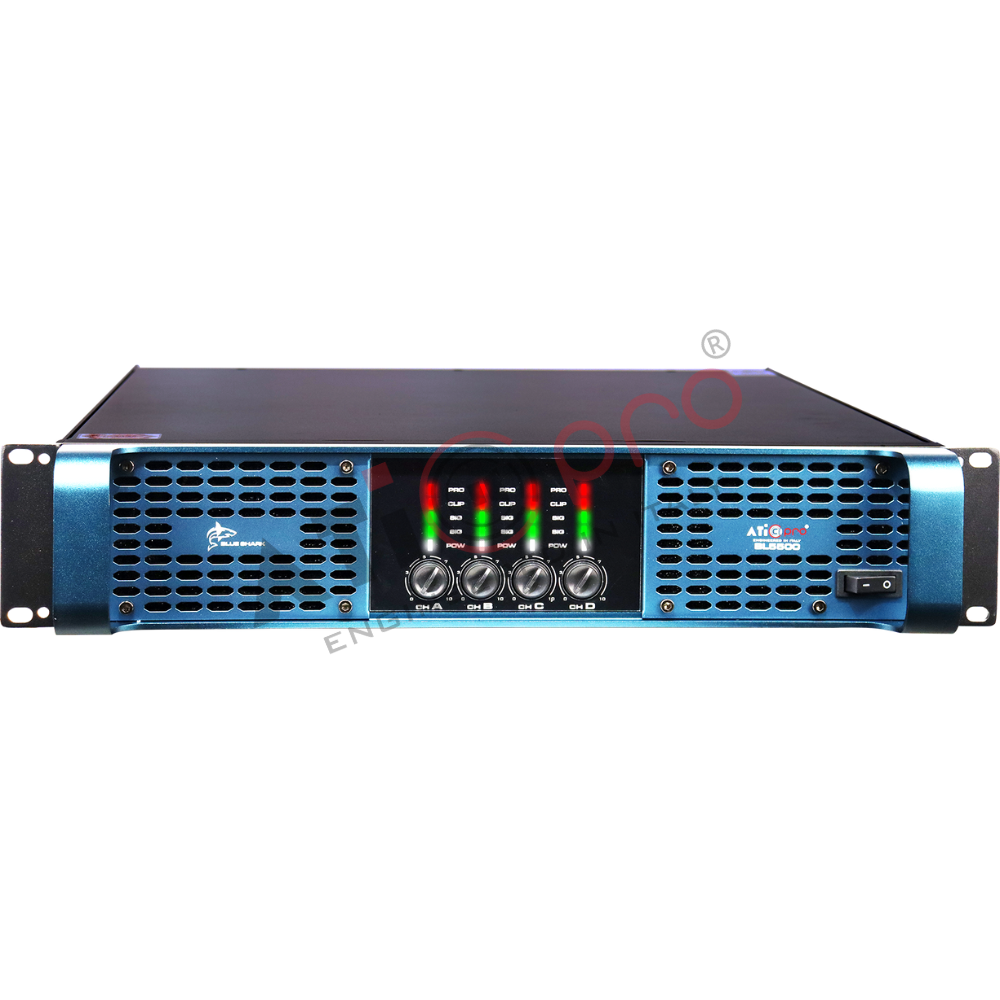

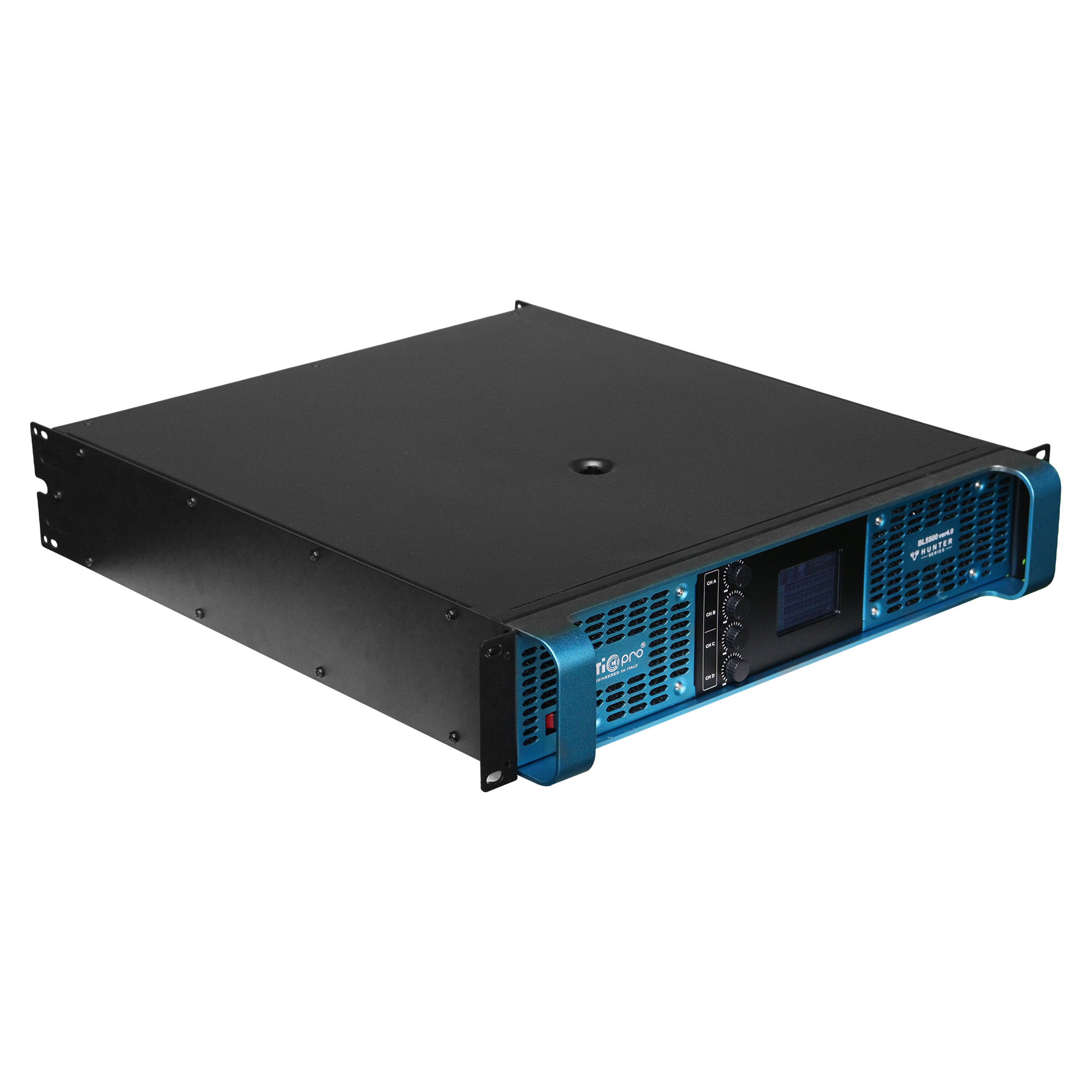

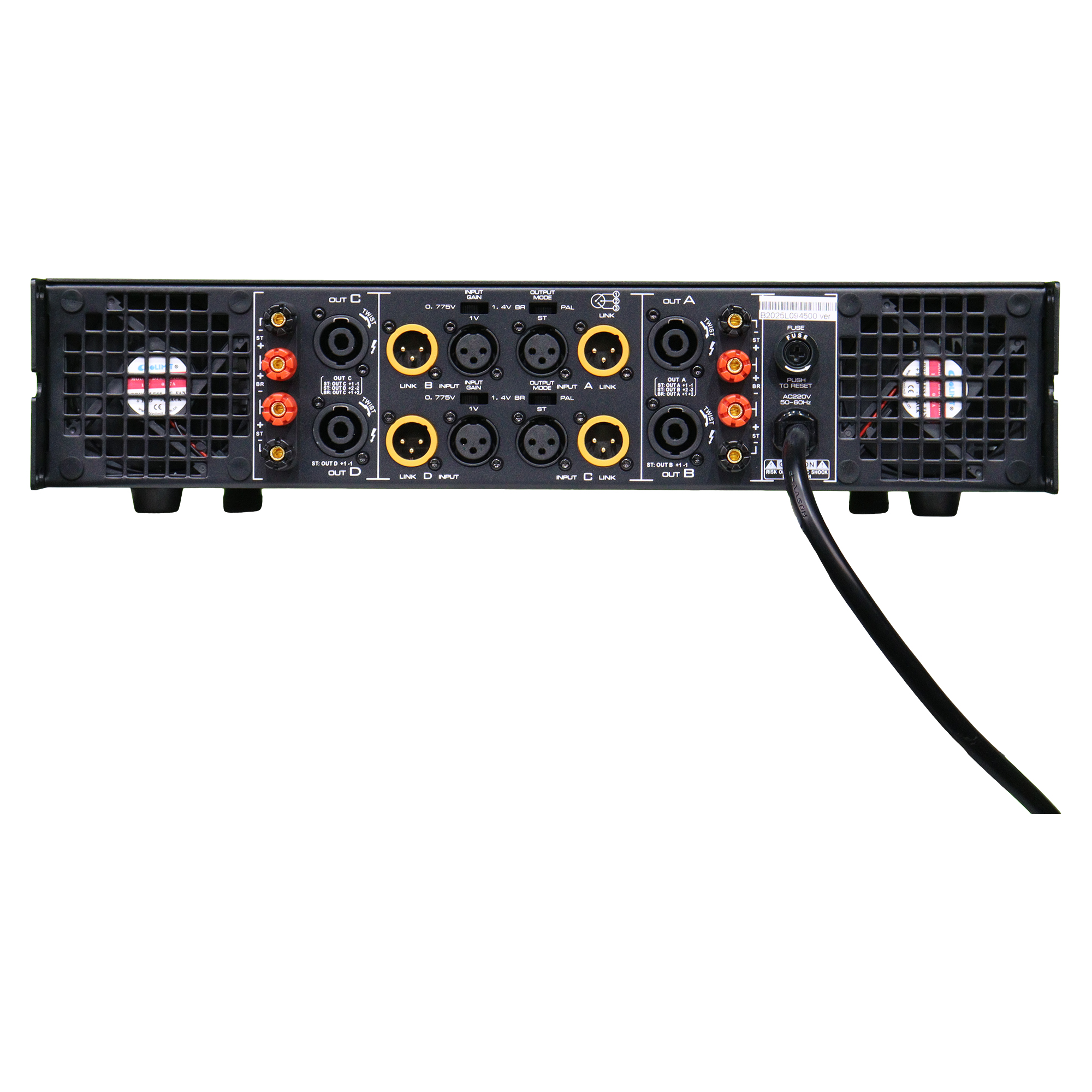

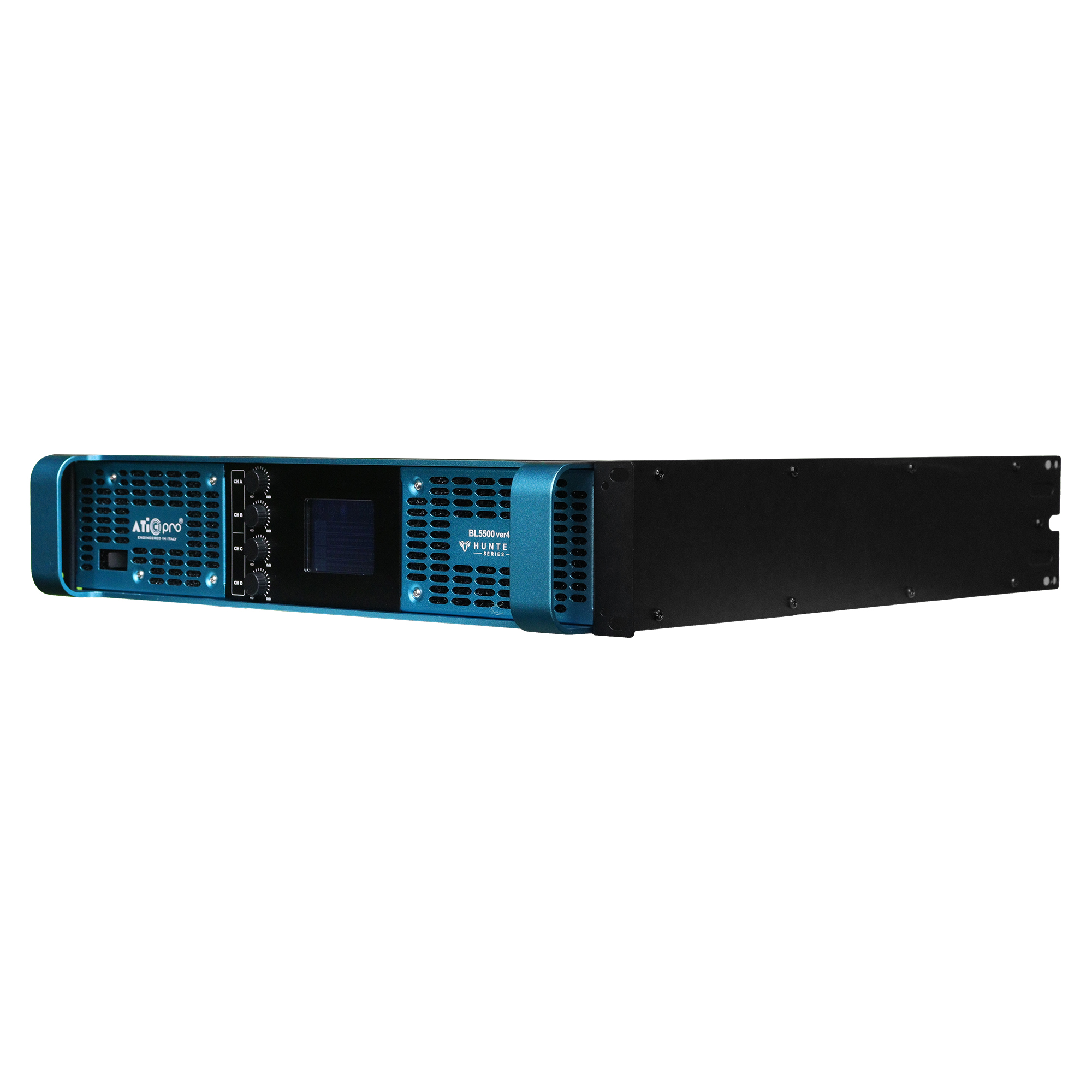

BL 5500 Ver 4.0 Amplifier (4 Channel)

Description

BL 5500 Ver 4.0 Professional Power Amplifier

The BL 5500 Ver 4.0 is a high-power Class H amplifier built for demanding professional audio environments. Designed for large-scale sound reinforcement, touring systems, nightclubs, houses of worship, and fixed installations, it delivers exceptional output, precision control, and dependable performance.

Exceptional Output Power

• 8Ω Stereo: 4 × 1200W

• 4Ω Stereo: 4 × 1400W

• 8Ω Bridge: 2 × 2400W

• 4Ω Bridge: 2 × 2800W

With flexible stereo and bridge configurations, the BL 5500 Ver 4.0 provides the power needed to drive full-range systems and subwoofers with authority and clarity.

Precision Audio Performance

• Frequency Response: 10 Hz – 20 kHz

• Signal-to-Noise Ratio: >100 dB

• Damping Factor: >3000 (8Ω)

Engineered for clean, accurate sound reproduction, this amplifier delivers deep, controlled bass, smooth mids, and crisp high frequencies. The ultra-high damping factor ensures superior speaker control and tight low-end performance.

Advanced Protection Technology

Built for reliability under continuous operation, the BL 5500 Ver 4.0 includes comprehensive protection systems:

• Short-Circuit Protection

• DC Overload Protection

• Overheat Protection

• Ultrasonic & RF Protection

• Voltage Peak Limiter

These integrated safeguards protect both the amplifier and connected speakers, ensuring long-term durability in high-demand environments.

Professional Design & Integration

• Input Sensitivity: 0.775V / 1V / 1.4V

• Operating Voltage: 110V / 220V

• Fuse: F-10A

• Class: H

• Dimensions: 483 × 436 × 90 mm (2U Rack Mount)

Housed in a rugged 2U rack-mount chassis, the BL 5500 Ver 4.0 integrates seamlessly into professional audio racks and touring systems.
