BL 4500 Ver 4.0 Amplifier (4 Channel)

Description

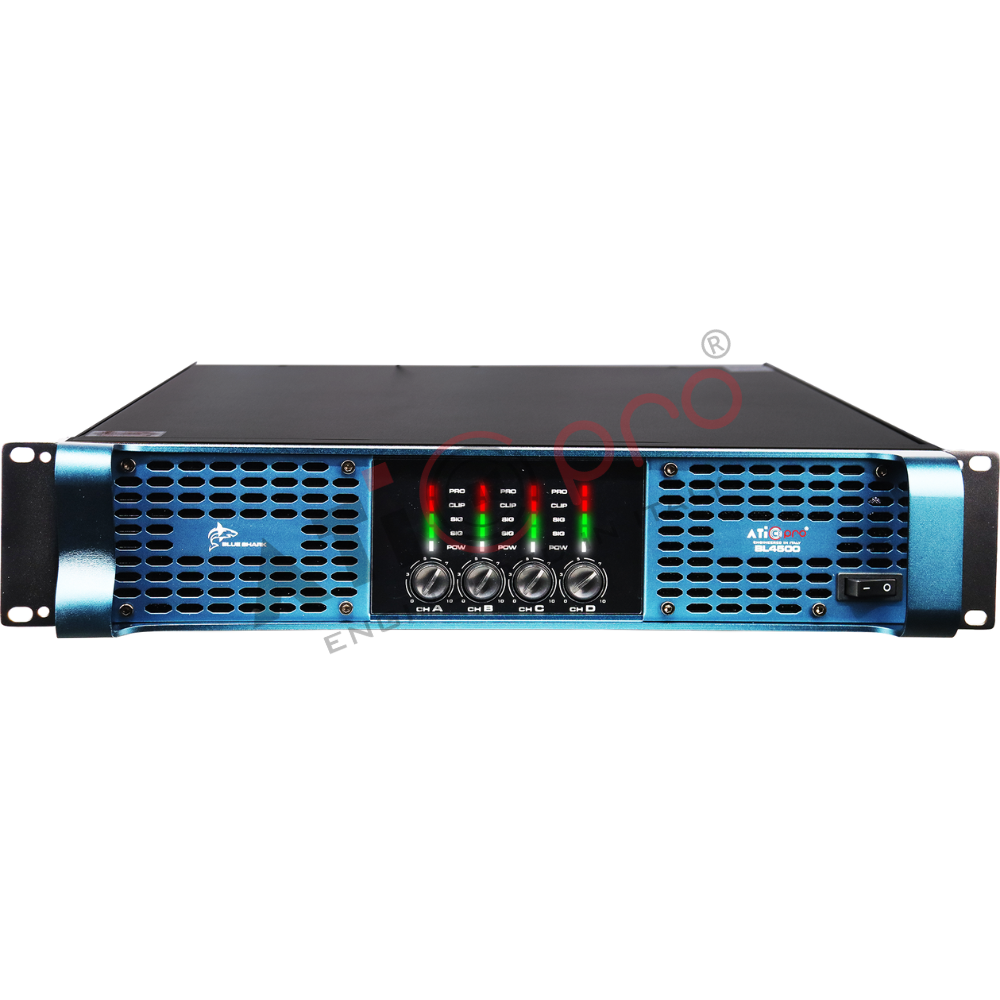

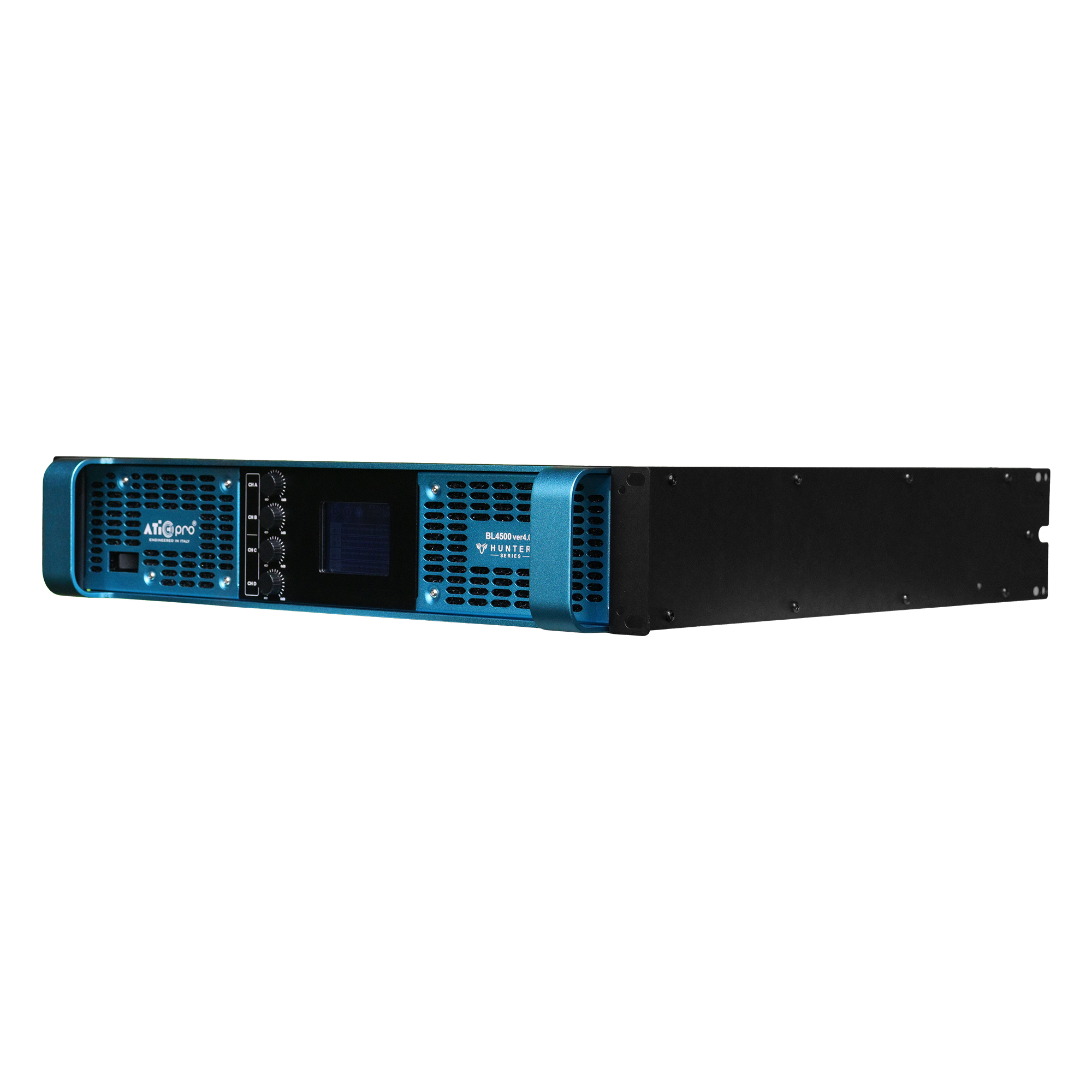

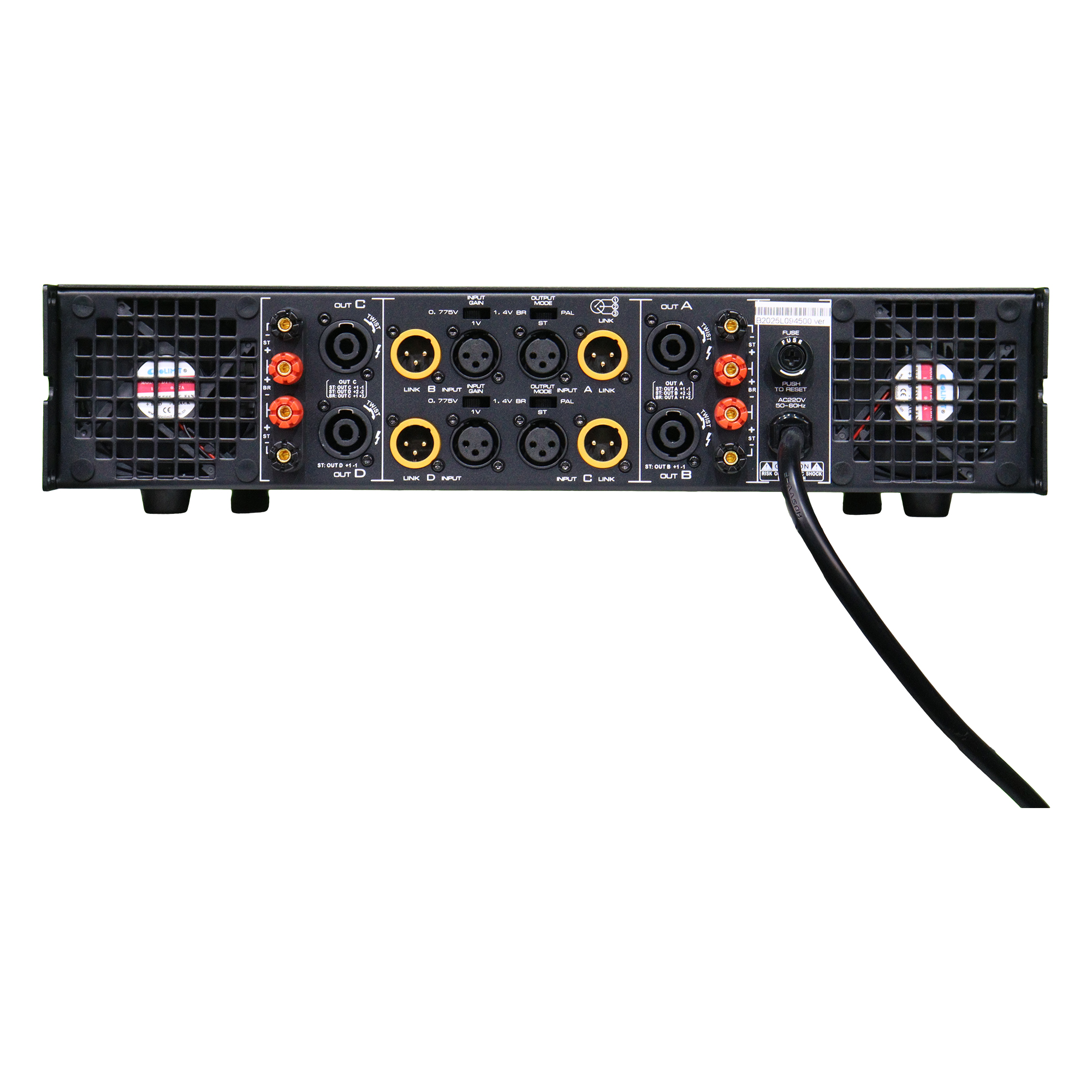

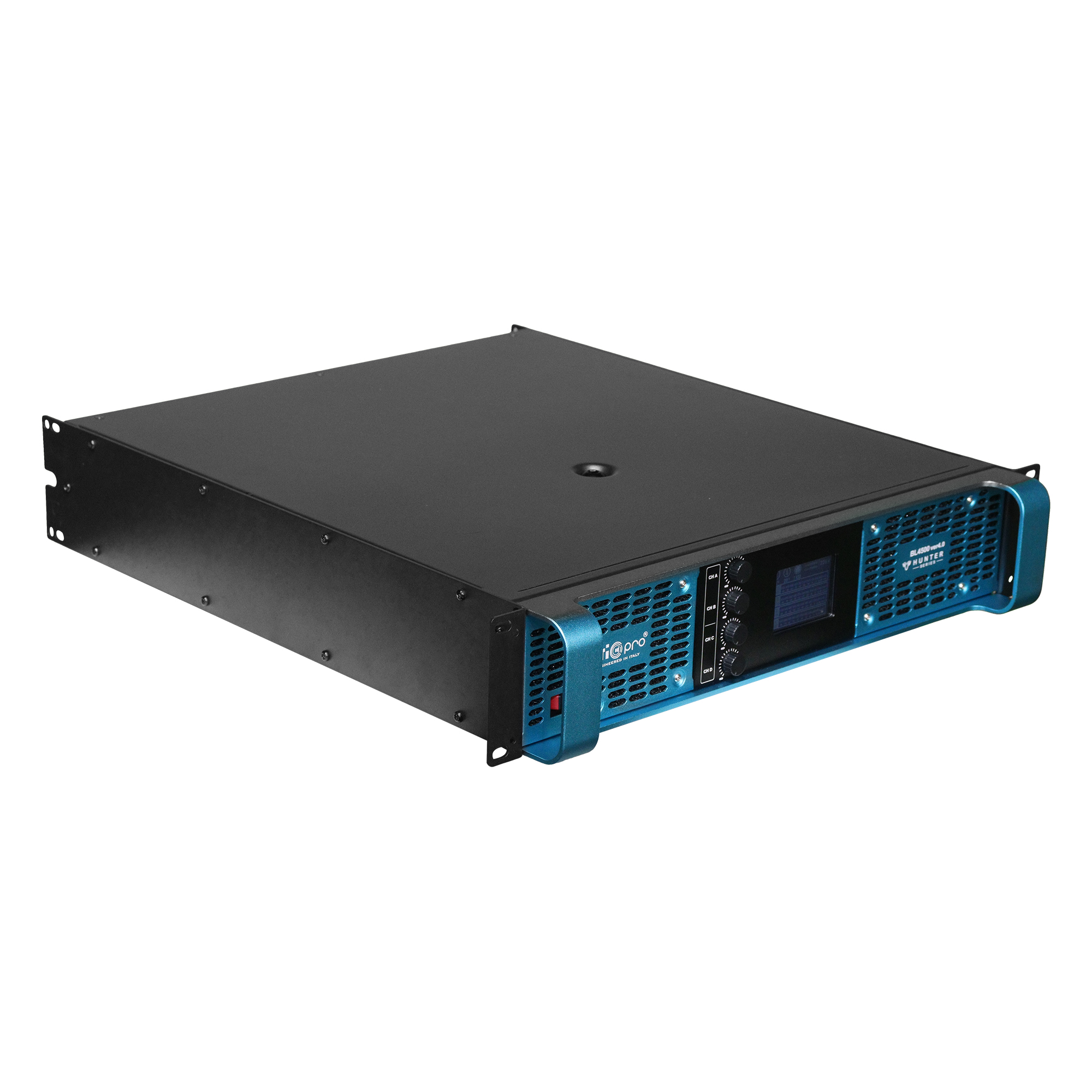

BL 4500 Ver 4.0 Professional Power Amplifier

The BL 4500 Ver 4.0 is a next-generation Class H power amplifier designed to deliver exceptional output, precision sound reproduction, and rock-solid reliability. Built for professional touring systems, fixed installations, concert venues, and high-demand live sound applications, it combines raw power with refined audio performance.

High-Output Performance

• 8Ω Stereo: 4 × 1000W

• 4Ω Stereo: 4 × 1200W

• 8Ω Bridge: 2 × 2000W

• 4Ω Bridge: 2 × 2400W

With flexible stereo and bridge modes, the BL 4500 Ver 4.0 adapts easily to multiple speaker configurations, delivering powerful, clean amplification even under heavy loads.

Superior Sound Quality

• Frequency Response: 10 Hz – 20 kHz

• Signal-to-Noise Ratio: >100 dB

• Damping Factor: >3000 (8Ω)

Engineered for clarity and control, this amplifier provides deep, tight bass, detailed midrange, and crisp highs. The exceptionally high damping factor ensures precise speaker control and enhanced low-frequency accuracy.

Comprehensive Protection System

Designed for continuous professional use, the BL 4500 Ver 4.0 features advanced protection circuitry to ensure maximum reliability:

• Short-Circuit Protection

• DC Overload Protection

• Overheat Protection

• Ultrasonic & RF Protection

• Voltage Peak Limiter

These integrated safeguards protect both the amplifier and connected speakers in demanding environments.

Flexible Integration & Design

• Input Sensitivity: 0.775V / 1V / 1.4V

• Operating Voltage: 110V / 220V

• Fuse: F-10A

• Class: H

• Dimensions: 483 × 436 × 90 mm (2U Rack Mount)

Housed in a standard 2U rack-mount chassis, the BL 4500 Ver 4.0 fits seamlessly into professional audio racks and touring systems.
