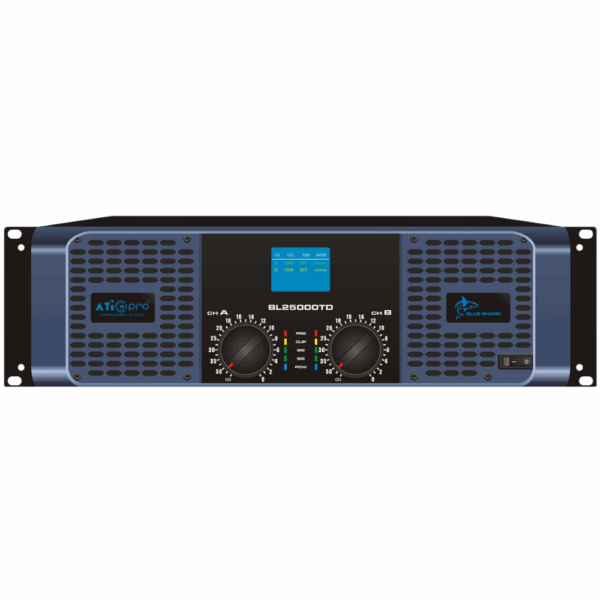

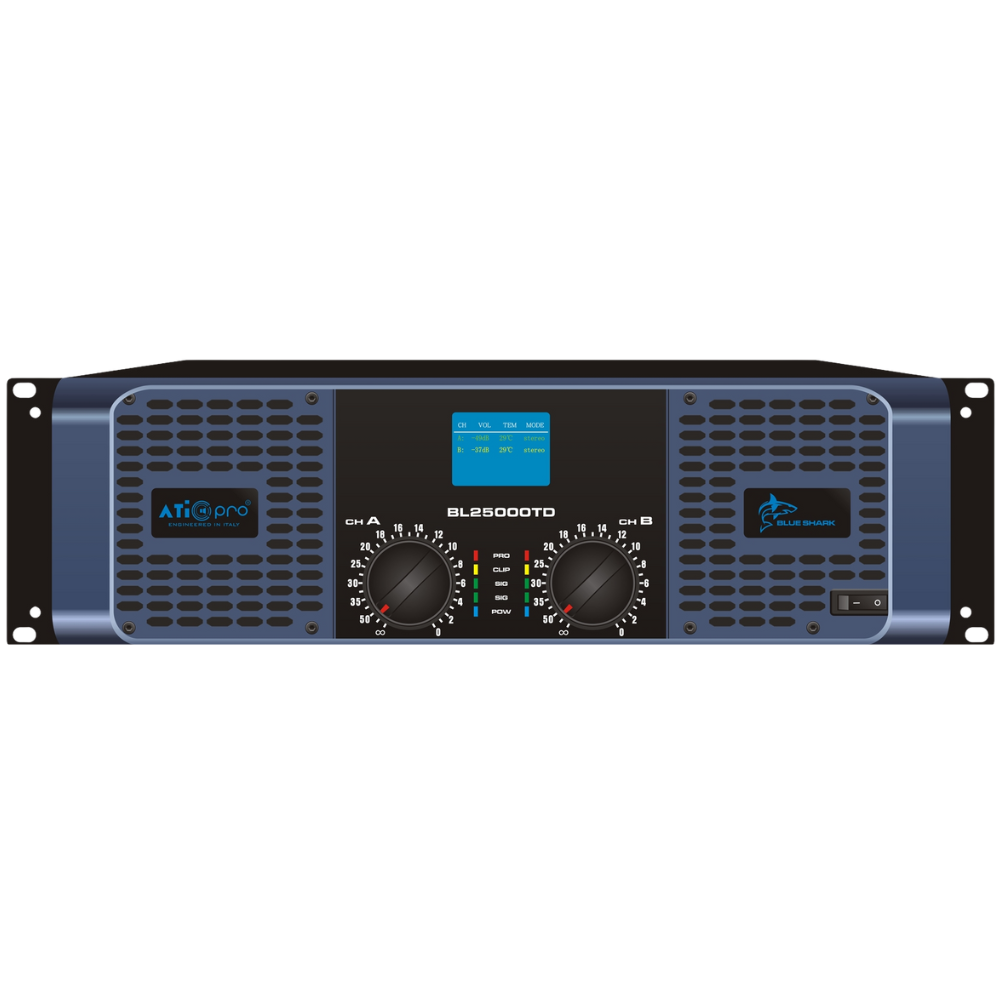

BL 25000TD (2 Channel) DJ Amplifier 13000 Watt

Description

BL 25000 TD Class TD Professional Power Amplifier

The BL 25000 TD is a high-efficiency Class TD professional power amplifier designed for demanding sound reinforcement systems that require massive output, precise control, and long-term reliability. Combining powerful performance with advanced signal management, it is ideal for concerts, touring rigs, large venues, and professional PA installations.

With stable 2Ω operation, ultra-high damping factor, and integrated crossover and filtering controls, the BL 20000 TD delivers tight low-frequency response, clean mids, and controlled highs. Its dual-fan cooling system and comprehensive protection circuitry ensure consistent performance even under continuous heavy-load operation.

Key Features

• High-efficiency Class TD amplifier topology

• Powerful stereo and bridge output with stable 2Ω performance

• Integrated low-cut filter and crossover control (384 channels)

• Ultra-high damping factor (>3000 @ 8Ω) for precise speaker control

• Individual volume control per channel

• Stereo / Parallel / Bridge operation modes

• Professional balanced XLR inputs

• Dual-fan forced-air cooling system for thermal stability

• Full front-panel LED indicators for real-time system monitoring

Power Output

• 8Ω Stereo: 2 × 2500 W

• 4Ω Stereo: 2 × 4500 W

• 2Ω Stereo: 2 × 6500 W

• 8Ω Bridge: 5000 W

• 4Ω Bridge: 9000 W

Audio Performance

• Frequency Response: 20 Hz – 20 kHz

• S/N Ratio (20 Hz – 20 kHz): 80 – 99 dB

• THD (@ 8Ω, 1 kHz): < 0.5%

• Input Impedance: 20 kΩ

• Damping Factor: >3000 (8Ω)

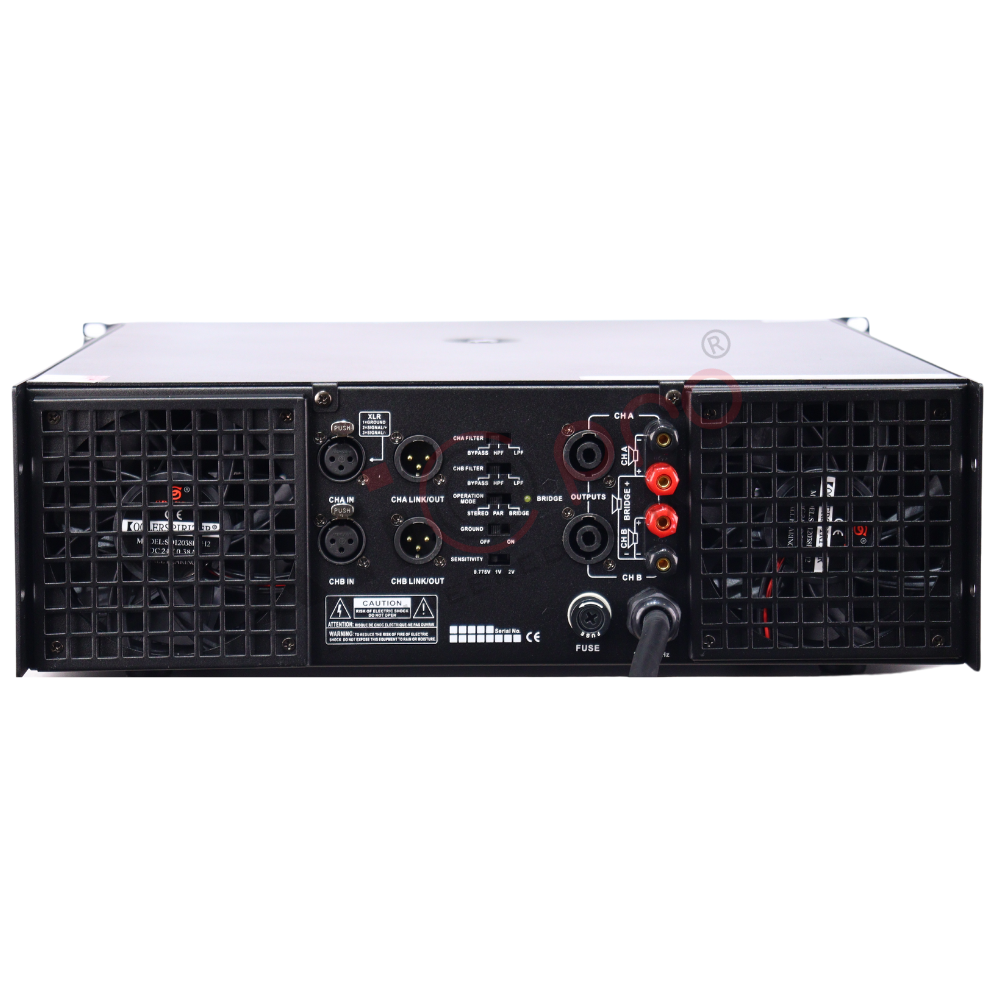

Connectivity & Control

• Input: Balanced Female XLR

• Controls:

  • Channel volume controls

  • Stereo / Parallel / Bridge mode selector

  • Low-cut filter

  • Built-in crossover (384 channels)

Protection & Reliability

• Short-circuit protection

• Automatic limiting

• AC/DC overload protection

• Clip and thermal protection

Indicators

• Power ON

• Active

• Signal

• Protect

• Clip

Power & Cooling

• Power Supply: 220V (default), 110V customizable

• Cooling System: Dual high-speed fans
