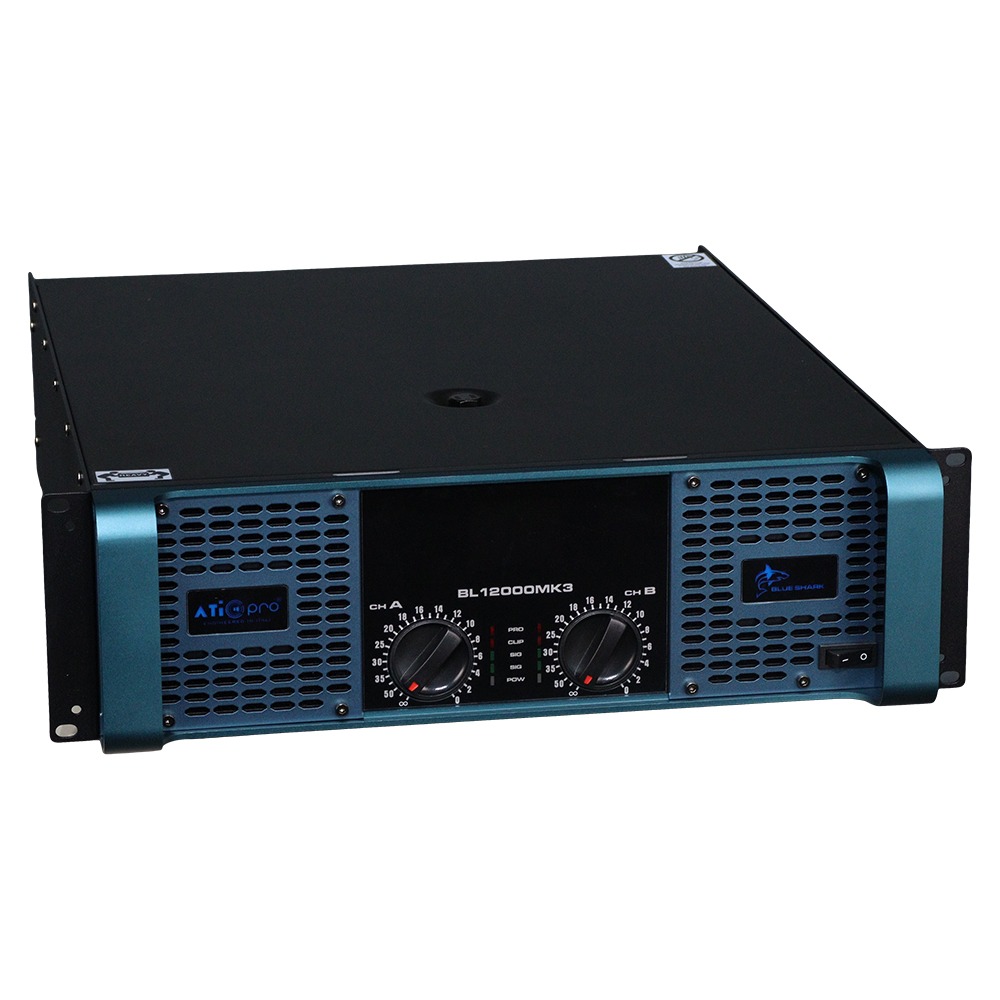

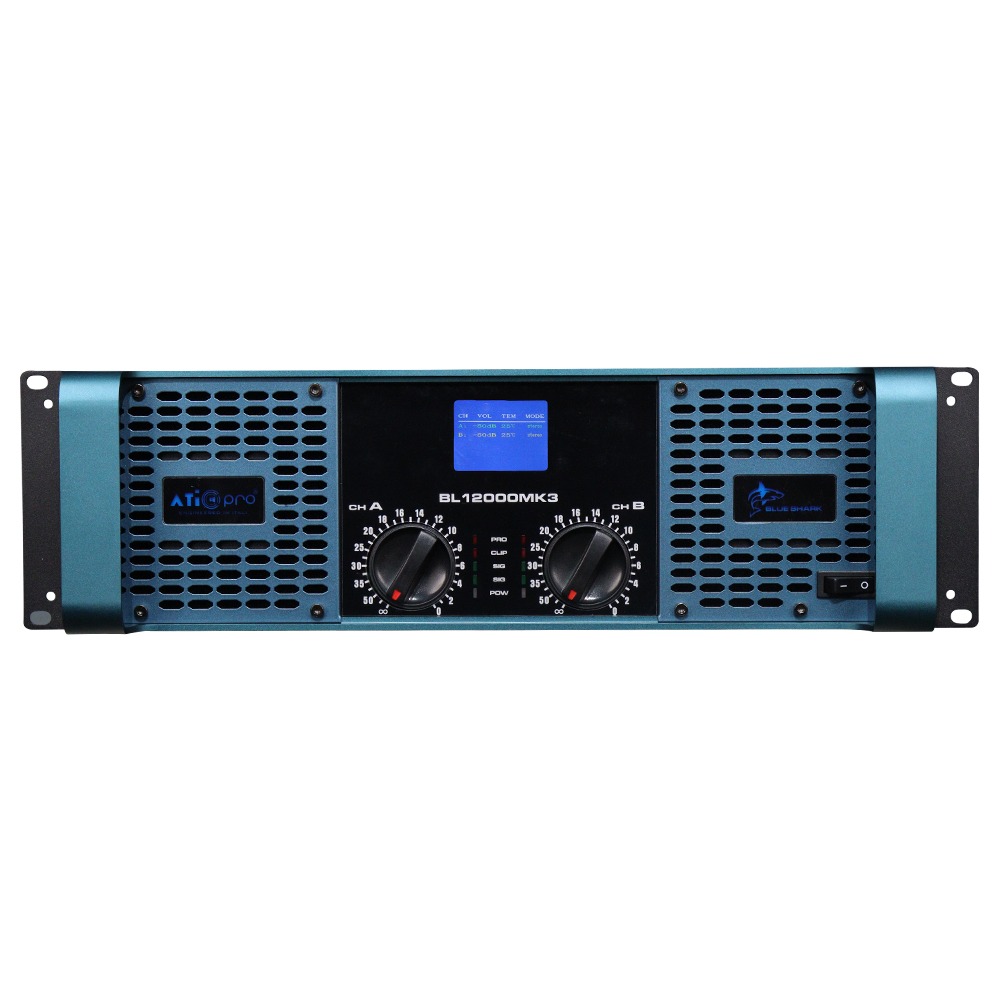

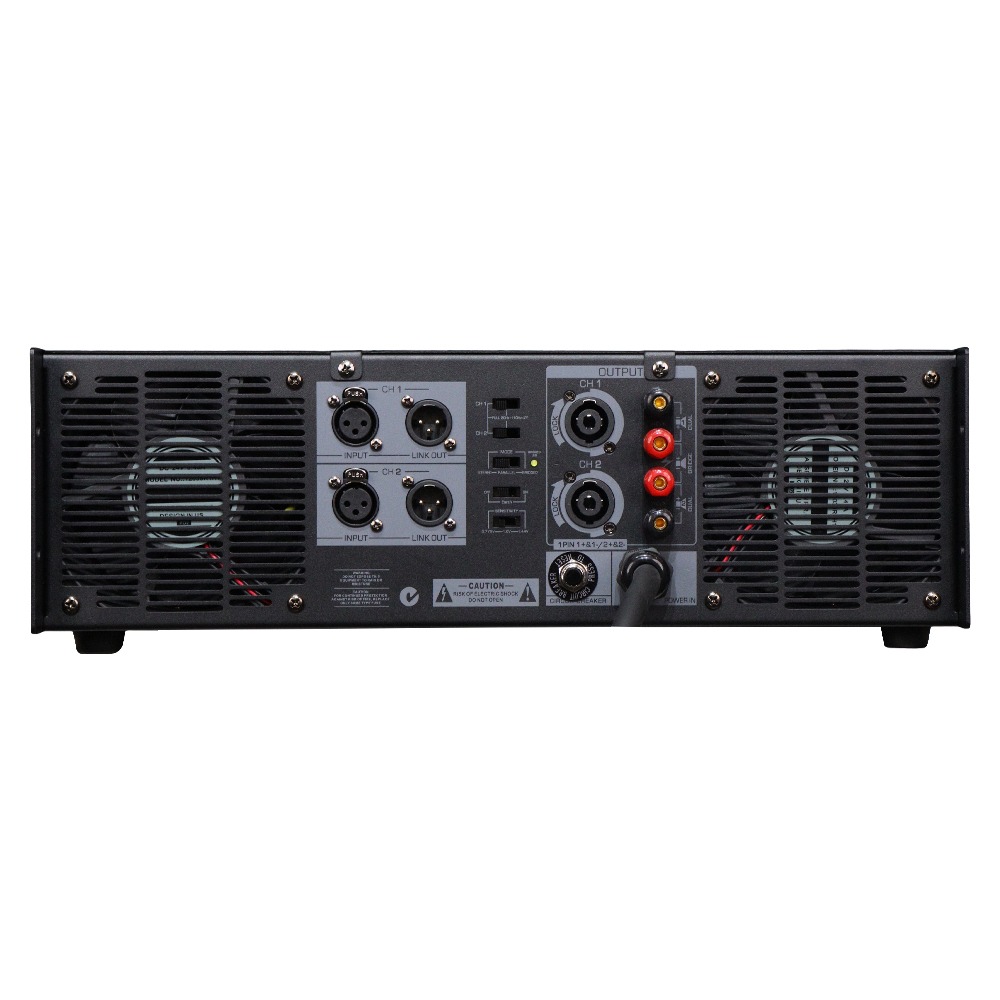

BL12000 MK3 DJ Amplifier (2 Channel) 11000 Watt

Description

BL 12000 MK3 Ultra-High Power Professional Amplifier

The BL 12000 MK3 is an ultra-high power Class H professional amplifier engineered for the most demanding sound reinforcement applications. Designed to deliver extreme output with absolute stability and precision, it is the perfect solution for large-scale concerts, touring systems, festivals, stadiums, and high-power fixed installations.

With massive stereo and bridge power, stable 2-ohm operation, and an exceptionally high damping factor, the BL 10000 MK3 provides deep, authoritative bass and crystal-clear audio across the entire frequency spectrum. Advanced protection circuitry and a heavy-duty 3U chassis ensure reliable performance even under continuous high-load operation.

Key Features

• Flagship Class H amplifier architecture for maximum efficiency and output

• Extremely high power delivery with reliable 2-ohm load stability

• Clean, dynamic sound with >100 dB signal-to-noise ratio

• Ultra-high damping factor (>3000 @ 8Ω) for precise loudspeaker control

• Selectable input sensitivity: 0.775V / 1V / 1.4V

• Comprehensive multi-layer protection system for long-term reliability

• Rugged 3U rack-mount chassis designed for touring and large installations

Power Output

• 8Ω Stereo: 2 × 2000 W

• 4Ω Stereo: 2 × 3400 W

• 2Ω Stereo: 2 × 5500 W

• 8Ω Bridge: 4000 W

• 4Ω Bridge: 6800 W

Technical Specifications

• Frequency Response: 10 Hz – 20 kHz

• S/N Ratio: >100 dB

• Damping Factor: >3000 (8Ω)

• Input Sensitivity: 0.775 V / 1 V / 1.4 V

• Operating Voltage: 110V / 220V

• Fuse: F-15A

• Protection: Short-Circuit, DC Overload, Overheat, Ultrasonic, RF, Voltage Peak Limit

• Dimensions: 483 × 555 × 144 mm (3U)
