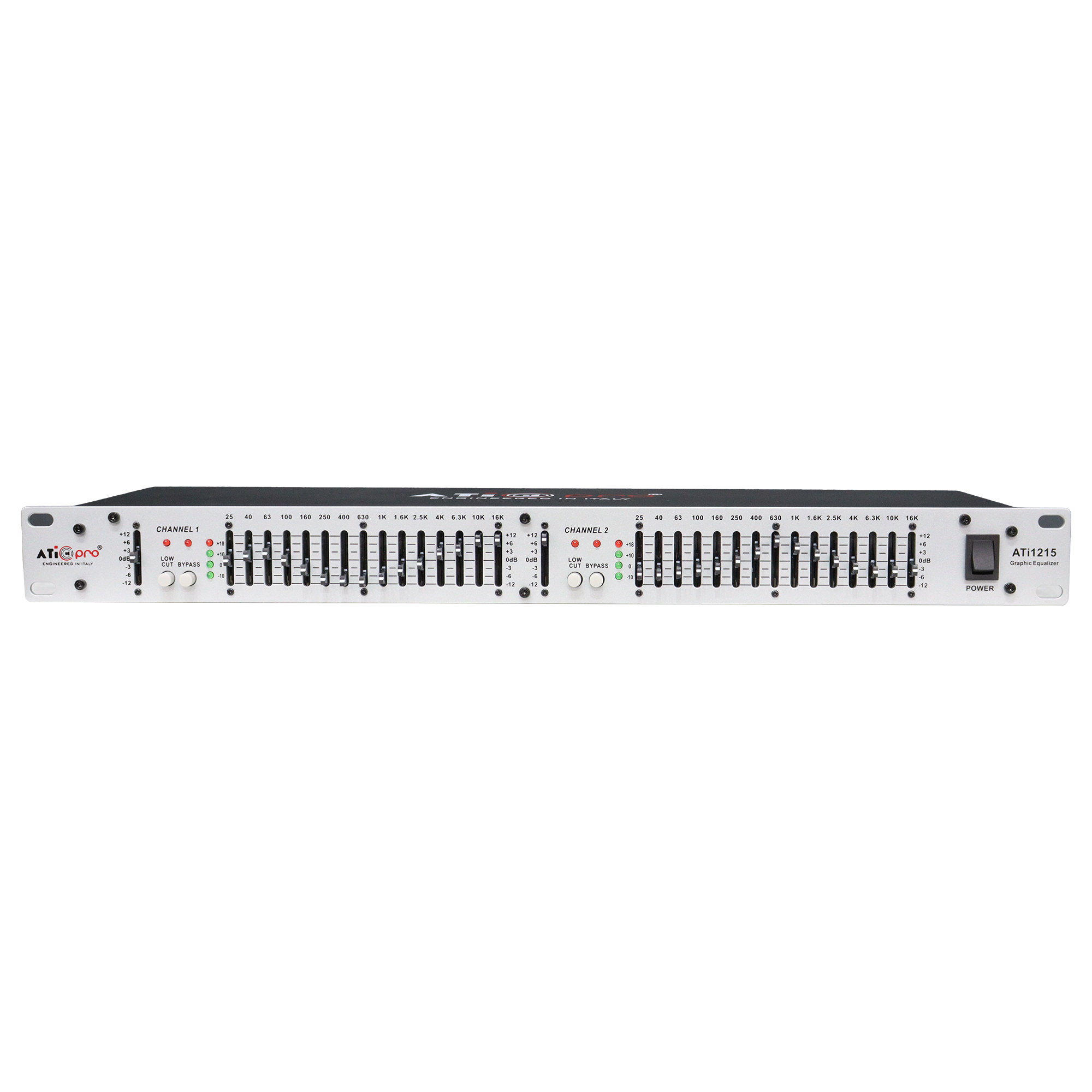

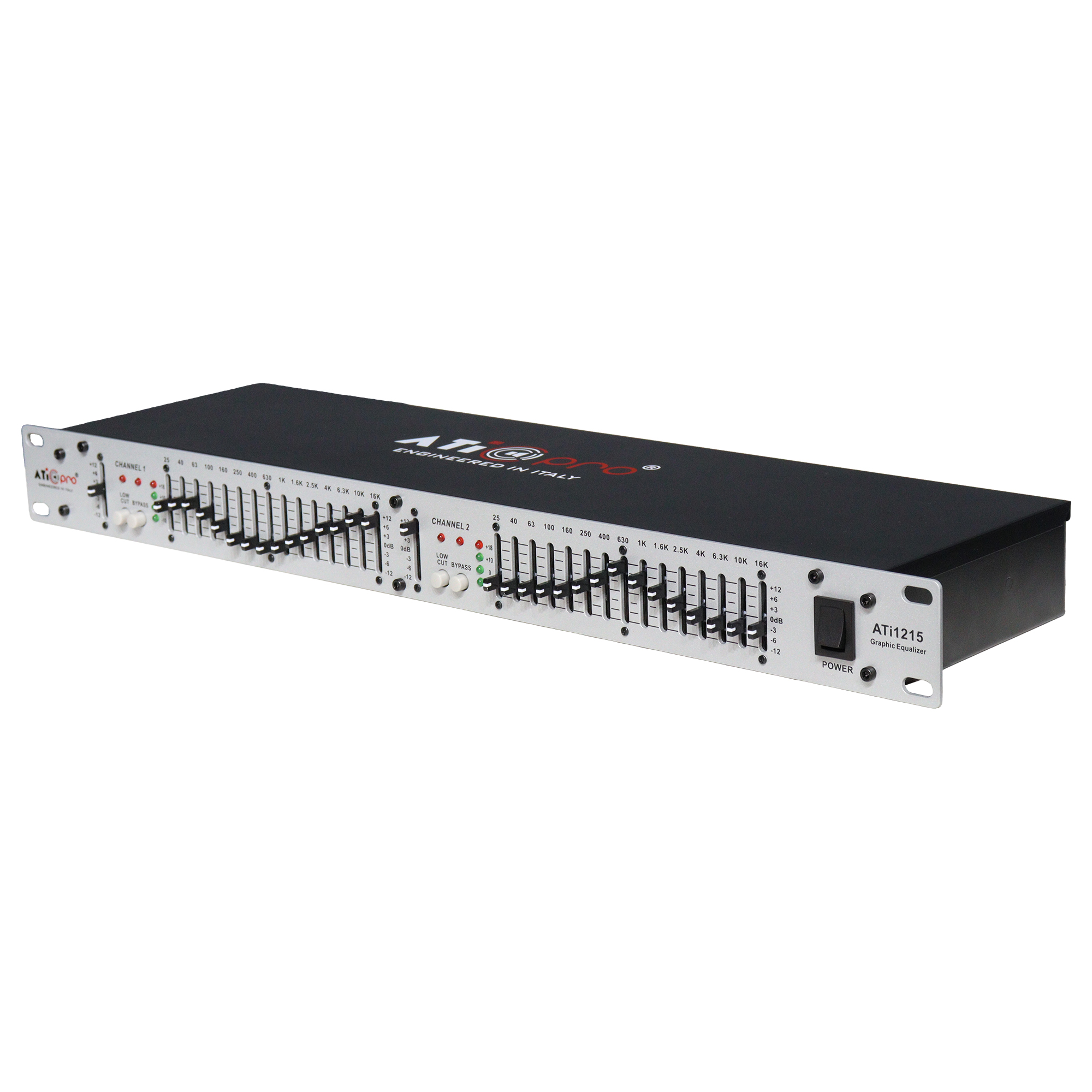

15 Band Equalizer Model – ATI 1215

Description

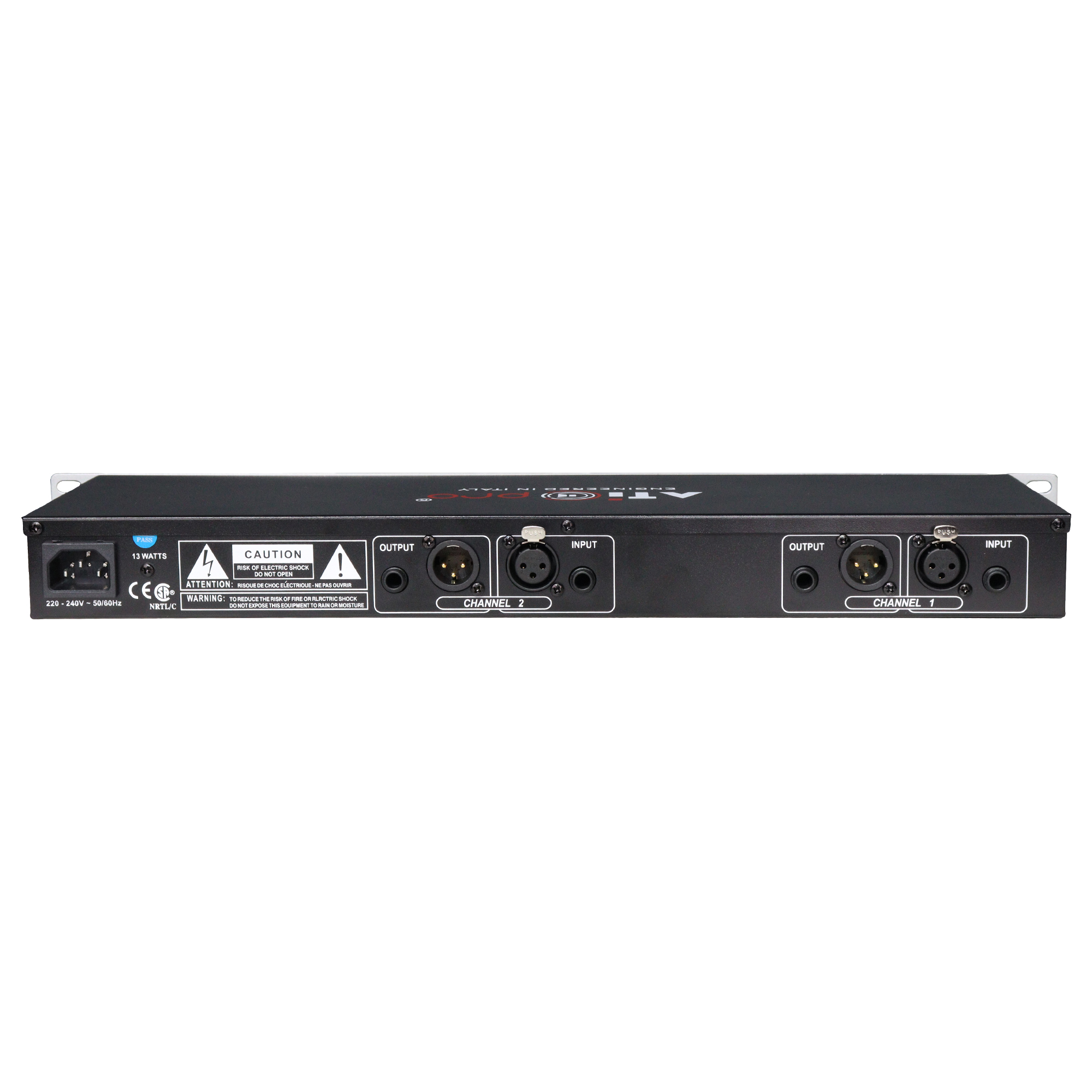

Inputs

• Connectors: 1/4″ TRS, female XLR (pin 2 hot)

• Type: Electronically balanced/unbalanced, RF filtered

• Impedance: Balanced 40 kΩ, unbalanced 20 kΩ

• Max Input Level: > +21 dBu (balanced or unbalanced)

• CMRR: >40 dB, typically >55 dB at 1 kHz

Outputs

• Connectors: 1/4″ TRS, male XLR (pin 2 hot)

• Type: Impedance-balanced/unbalanced, RF filtered

• Impedance: Balanced 100 Ω, unbalanced 50 Ω

• Max Output Level:

  • +21 dBu balanced/unbalanced into 2 kΩ or greater

  • +18 dBm balanced/unbalanced into 600 Ω

System Performance

• Bandwidth: 20 Hz to 20 kHz, +0.5/-1 dB

• Frequency Response: <10 Hz to >50 kHz, +0.5/-3 dB

• Dynamic Range: Typically >112 dB

• Signal-to-Noise Ratio: Typically >95 dB

• THD+Noise: <0.003%

• Interchannel Crosstalk: <-90 dB, 20 Hz to 20 kHz

Function Switches

• EQ Bypass: Bypasses the graphic equalizer section in the signal path

• Low Cut: Activates the 50 Hz, 12 dB/octave high-pass filter

• Range: Selects either +/- 6 dB or +/- 12 dB slider boost/cut range

Power Supply

• Operating Voltage: 100–240 VAC, 50/60 Hz

• Power Consumption: 15 W

• Mains Connection: IEC receptacle
